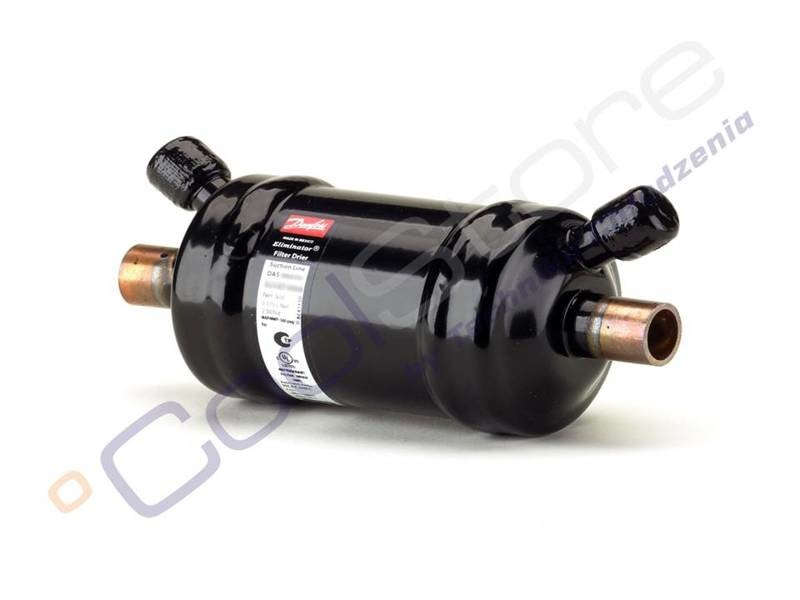

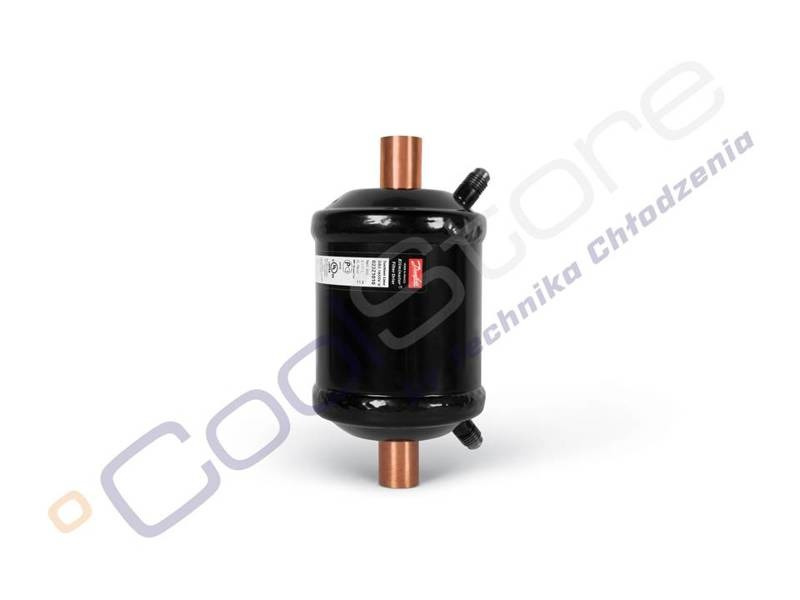

Burn-out filter drier Danfoss DAS 309sW Solder 023Z1016
Burn-out filter drier for fluorinated refrigerants.
70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
2 Schraeder access valves to measure pressure drop across the drier.
Max. working pressure: 35 bar.
120 mesh wire mesh for solid particle retention.
70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
2 Schraeder access valves to measure pressure drop across the drier.
Max. working pressure: 35 bar.
120 mesh wire mesh for solid particle retention.
Characteristic |
Value |
Catalogue number |
023Z1016 |
Solid core surface |
378 cm2 |
Nominal capacity |
720 cm3 |
Inlet connection size ODS |
1 1/8" |
TS (min ~ max) |
-40 ~ 70 °C |
PS |
35 bar |
Tech specs:
Pictures: | illustrative |
