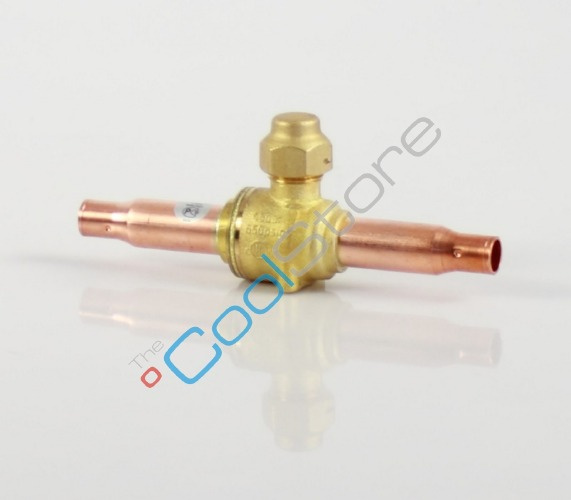

Danfoss GBC ball valve GBC 10s solder 10mm 009G7031

  • GBC valves are equipped with a one-piece seal cap and can be wire sealed to prevent unintentional cap removal or tampering in-between services.
  • Danfoss GBC ball valve GBC 10s solder 10mm 009G7031
Producer: DANFOSS
Product code: 009G7031
39,98 €
/ pc.
32,50 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Danfoss GBC ball valve GBC 10s solder 10mm 009G7031

TECHNICAL DATA

Danfoss ball valves, type GBC, are manually operated shut-off valves suitable for bi-directional flow. GBC valves are used in liquid, suction and hotgas lines in refrigeration and air-conditioning systems. The ball valves give maximum flow in the fully open position. They are designed for operation within a broad temperature

Characteriatic

Value

Type

GBC 10s

Cv-value [USgal/min]

8,63

Direction

Straightway

Inlet connection type

Solder, ODF

Inlet size

10 mm

Kv-value [m/h]

5,68

Max. test pressure

65,0 bar

Max. Working Pressure

45,0 bar

Outlet connection type

Solder, ODF

Outlet size

10 mm

Refrigerant(s)

CFC, HCFC, HFC

Temperature range [°C]

-40 ~150°C




Tech specs:
Pictures:
illustrative
