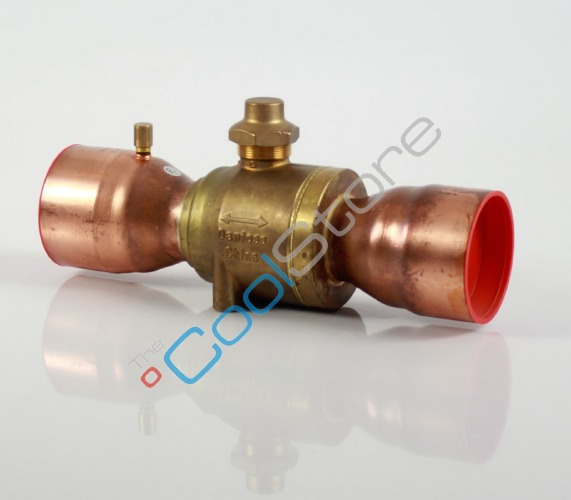

Danfoss GBC ball valve 79s solder 3 1/8" 009G7037

  • GBC valves are equipped with a one-piece seal cap and can be wire sealed to prevent unintentional cap removal or tampering in-between services.
  • Danfoss GBC ball valve 79s solder 3 1/8" 009G7037
Producer: DANFOSS
Product code: AUDA_7742
Series:Danfoss_38_40
607,62 €
/ pc.
494,00 €
net / pc.
Add to wish list

Danfoss GBC ball valve 79s solder 3 1/8" 009G7037



TECHNICAL DATA

Danfoss ball valves, type GBC, are manually operated shut-off valves suitable for bi-directional flow. GBC valves are used in liquid, suction and hotgas lines in refrigeration and air-conditioning systems. The ball valves give maximum flow in the fully open position. They are designed for operation within a broad temperature

Characteriatic

Value

Typ

GBC 79s

Cv-value [USgal/min]

979,73

Direction

Straightway

Inlet connection type

Solder, ODF

Inlet size

3 1/8"

Kv-value [m³/h]

222,52

Max. test pressure [bar]

65,0 bar

Max. Working Pressure [bar]

45,0 bar

Outlet connection type

Solder, ODF

Outlet size

3 1/8"

Refrigerant(s)

CFC, HCFC, HFC

Temperature range [°C]

-40 ~150°C




Tech specs:
Pictures:
illustrative
