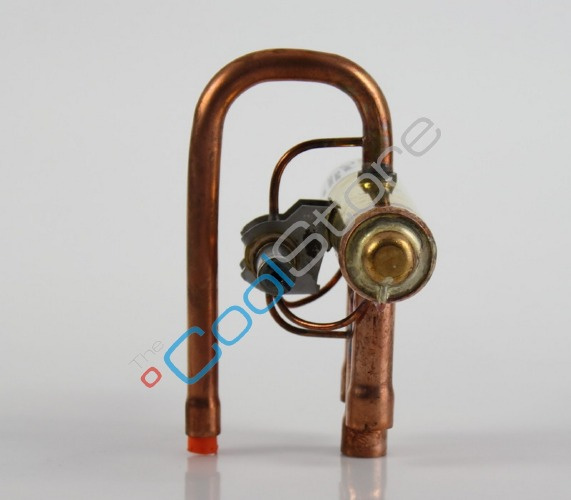

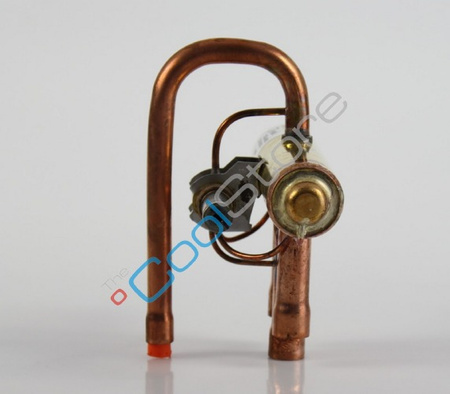

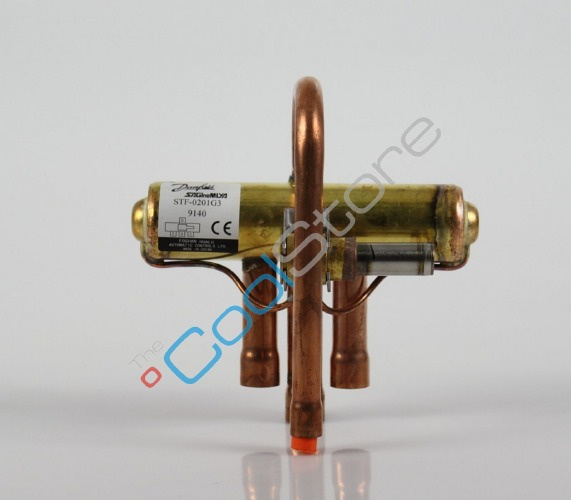

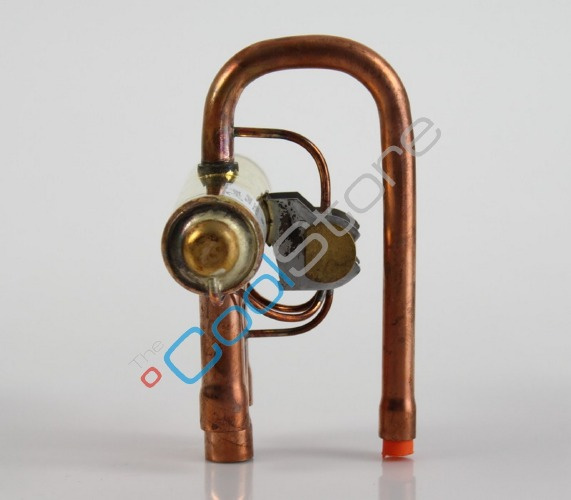

4-Way Reversing Valve Danfoss STF-0401G 061L1209

  • STF - a wide range of valves with capacities up to 40 kW. Complete range compatible for use with R410a and other refrigerants.
  • 4-Way Reversing Valve Danfoss STF-0401G 061L1209
  • 4-Way Reversing Valve Danfoss STF-0401G 061L1209
  • 4-Way Reversing Valve Danfoss STF-0401G 061L1209
Producer: DANFOSS
Product code: AUDA_2130
Series:Danfoss_38_40
156,21 €
/ pc.
127,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

4-Way Reversing Valve Danfoss STF-0401G 061L1209


TECHNICAL DATA

STF - a wide range of valves with capacities up to 40 kW. Complete range compatible for use with R410a and other refrigerants. Ambient temperature: -20 - +55°C.


Characteristic

Value

Type

STF-0401G

Capacity range

8.3 - 29.2 KW

Connection size - discharge side

1/2"

Connection size - discharge side

12.80 mm

Connection size - suction side

3/4"

Connection size - suction side

19.15 mm

Max. Working Pressure

45 bar

Refrigerants

R410A/R407C/R22/R404A/R134a

Replaces

061L1001

Type designation

STF-0401G




Tech specs:
