4-Way Reversing Danfoss STF-1513G 061L1217

  • STF - a wide range of valves with capacities up to 40 kW. Complete range compatible for use with R410a and other refrigerants.
  • 4-Way Reversing Danfoss STF-1513G 061L1217
  • 4-Way Reversing Danfoss STF-1513G 061L1217
  • 4-Way Reversing Danfoss STF-1513G 061L1217
  • 4-Way Reversing Danfoss STF-1513G 061L1217
Producer: DANFOSS
Product code: AUDA_2154
Series:Danfoss_38_40
335,79 €
/ pc.
273,00 €
net / pc.
Add to wish list

4-Way Reversing Danfoss STF-1513G 061L1217


TECHNICAL DATA

STF - a wide range of valves with capacities up to 40 kW. Complete range compatible for use with R410a and other refrigerants. Ambient temperature: -20 - +55°C.

Characteristic

Value

Type

STF-1513G

Capacity range

41 - 61 KW

Connection size - discharge side

7/8"

Connection size - discharge side

22.50 mm

Connection size - suction side

1 1/8"

Connection size - suction side

35.00 mm

Max. Working Pressure

45 bar

Refrigerants

R410A R407C/R22/R404A/R134a

Replaces

061L1171

Type designation

STF-1513G




Tech specs:
Pictures:

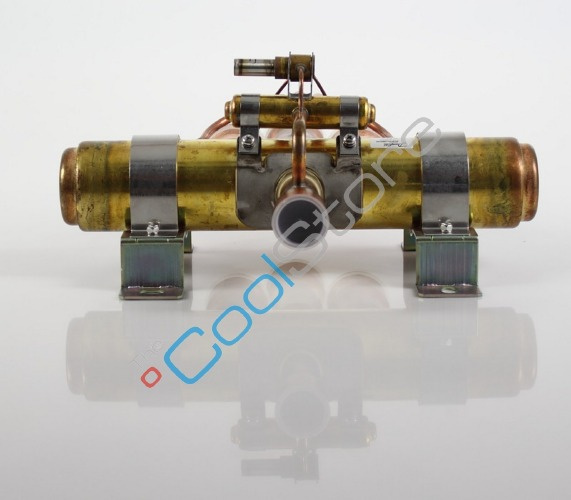

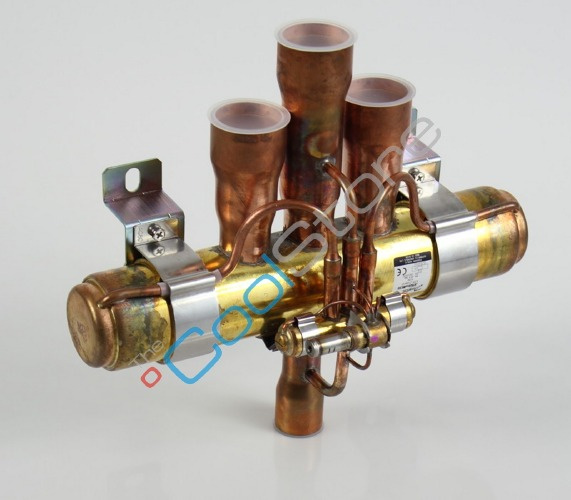

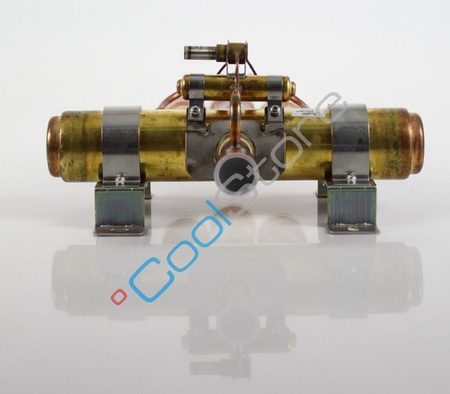

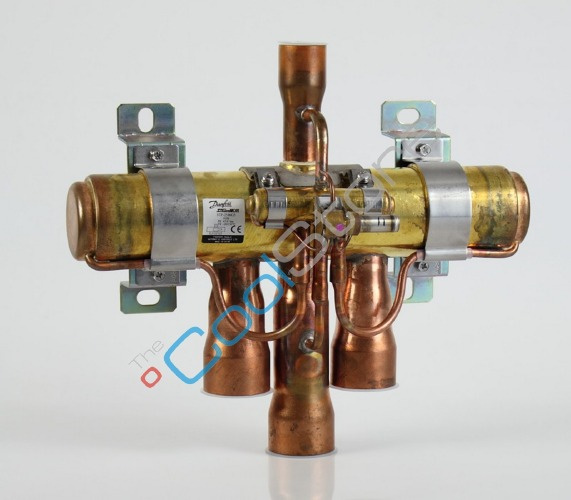

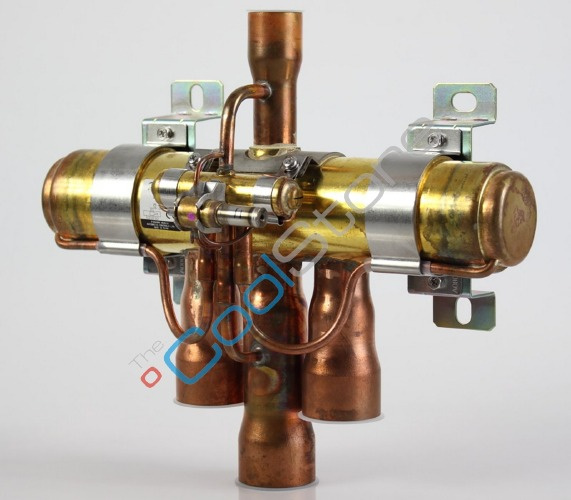

illustrative
