Compressors Danfoss R134a SC12/12G 195B0051

  • Hermetic compressor for small refrigerating systems.
  • Compressors Danfoss R134a SC12/12G 195B0051
Producer: DANFOSS
Product code: SPDA_00035
Series:Danfoss 35
706,02 €
/ pc.
574,00 €
net / pc.
Add to wish list

Compressors Danfoss R134a SC12/12G 195B0051



Singlepack kits are complete compressor kits with all electrical and mounting accessories required for an installation or replacement. The singlepack lists provide the code numbers that are included in the kits. For comprehensive technical data on these code numbers, please refer to the individual code numbers.

TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage Evaporating
temperature range

Lubricant
(Charge/Type)

 Weight Max. Height
SC12/12G 2x12,87 cm3 R-134a 198-254V / 50Hz -35°C~+15°C

- /1120 ml

 28,5 kg 249 mm

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R-134a

Condensing Temp.

 -35ºC -30ºC -25ºC -20ºC -15ºC -10ºC -5oC 0oC +5oC +10oC +15oC
SC12/12G 55 ºC 129 W 226 W 350 W 505 W 696 W 928 W 1206 W 1535 W 1920 W 2364 W 2875 W



Tech specs:
Pictures:

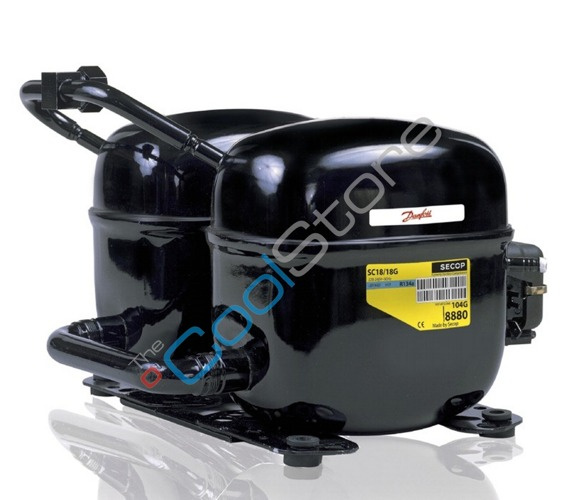

illustrative
