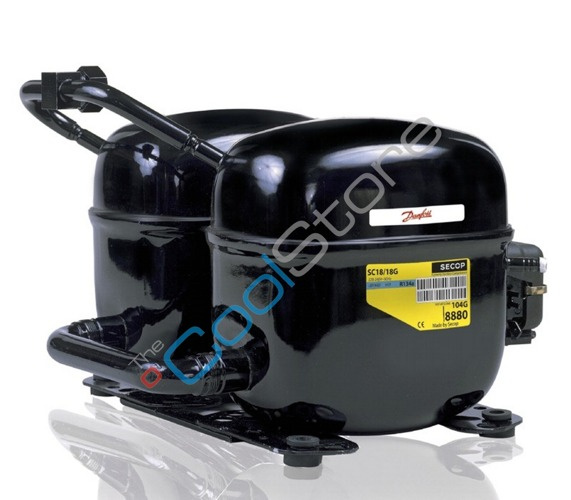

Compressors Danfoss R134a SC15/15G 195B0056

Hermetic compressor for small refrigerating systems.

Producer: DANFOSS

Product code: SPDA_00036

Series:Danfoss 35

Size:

Our price:

716,72 €

/ pc.

582,70 €

net / pc.

Quantity:

Compressors Danfoss R134a SC15/15G 195B0056

Singlepack kits are complete compressor kits with all electrical and mounting accessories required for an installation or replacement. The singlepack lists provide the code numbers that are included in the kits. For comprehensive technical data on these code numbers, please refer to the individual code numbers.

TECHNICAL DATA

Model	Displacement	Refrigerant	Voltage	Evaporating temperature range	Lubricant (Charge/Type	Weight	Max. Height
SC15/15G	2x15,28 cm³	R-134a	198-254V / 50Hz	-25°C~+15°C	- /1120 ml	28 kg	249 mm

Cooling Capacity


Model	Evaporating Temp. / Cooling Capacity R-134a
Model	Condensing Temp.	-25ºC	-20ºC	-15ºC	-10ºC	-5ºC	0ºC	+5ºC	+10ºC	+15ºC
SC15/15G	55 ºC	328 W	581 W	847 W	1137 W	1457 W	1815 W	2220 W	2679 W	3201 W

Tech specs:

Pictures:	illustrative

Technical data Download
