Compressors Danfoss R134a SC15FT 195B0407
Singlepack kits are complete compressor kits with all electrical and mounting accessories required for an installation or replacement. The singlepack lists provide the code numbers that are included in the kits. For comprehensive technical data on these code numbers, please refer to the individual code numbers.
TECHNICAL DATA
Model |
Displacement |
Refrigerant | Voltage | Evaporating temperature range |
Lubricant |
Weight | Max. Height |
SC15FT | 15,28 cm3 | R-134a | 187-254V / 50Hz | -35°C~-5°C |
- /550 ml |
13,6 kg | 209 mm |
Cooling Capacity
Model |
Evaporating Temp. / Cooling Capacity R-134a |
|||||||
Condensing Temp. |
-35oC | -30oC | -25ºC | -20ºC | -15ºC | -10ºC | -5oC | |
SC15FT | 55 ºC | 126 W |
197 W | 280 W | 376 W | 489 W | 620 W | 772 W |
Tech specs:

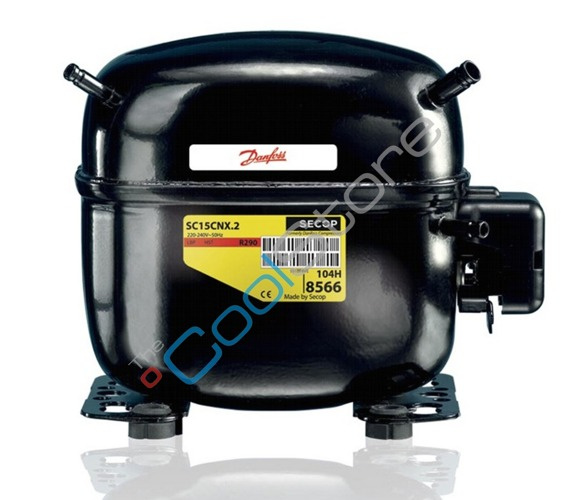

Pictures: | illustrative |
