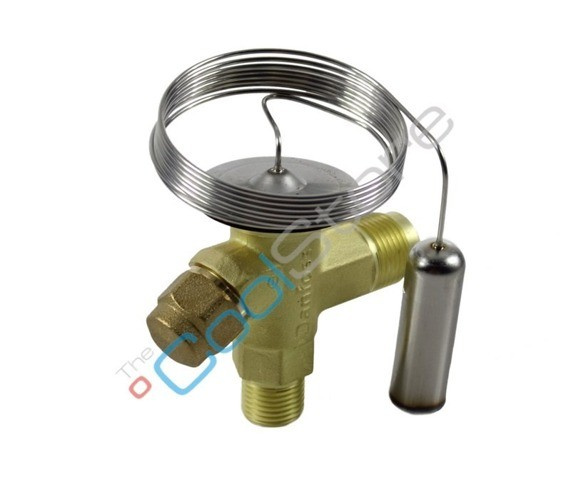

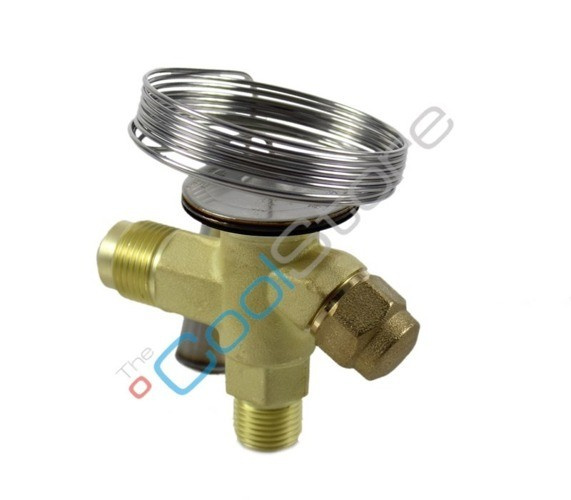

Thermostatic expansion valve Danfoss TZ2 068Z3496/068Z7433 R407C

  • Thermostatic expansion valve regulates injection of refrigerant into the evaporator. Injection is controlled by overheating.
  • Thermostatic expansion valve Danfoss TZ2 068Z3496/068Z7433 R407C
  • Thermostatic expansion valve Danfoss TZ2 068Z3496/068Z7433 R407C
Producer: DANFOSS
Product code: AUDA_0726
Series:Danfoss_38_40
75,15 €
/ pc.
61,10 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability
Thermostatic expansion valve  Danfoss TZ2 068Z3496/068Z7433  R407C


Angleway valve body, inlet size 3/8 inch, outlet size 1/2 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar.

Characteristic

Value

Type

TZ 2

Capillary tube length [mm]

1.500 mm

Equalization connection type

Flare

Inlet connection type

Flare

Inlet size [in]

3/8”

Max. Working Pressure [bar]

34,0 bar

Outlet connection type

Flare

Outlet/Equalization size [in]

-

Refrigerant(s)

 R407C

Static Superheat (SS) [°C]

5,0

Temperature range [°C]

-40 ~ 10 °C



Tech specs:
Pictures:
illustrative
