Thermostatic expansion valve Danfoss TEN2 068Z3348 R134a

  • Thermostatic expansion valve regulates injection of refrigerant into the evaporator. Injection is controlled by overheating.
  • Thermostatic expansion valve Danfoss TEN2 068Z3348 R134a
  • Thermostatic expansion valve Danfoss TEN2 068Z3348 R134a
Producer: DANFOSS
Product code: AUDA_0742
Series:Danfoss_38_40
116,73 €
/ pc.
94,90 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

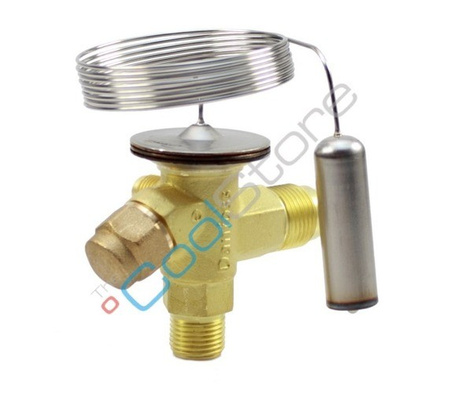

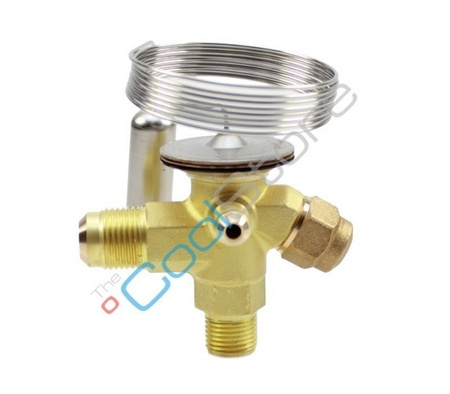

Thermostatic expansion valve  Danfoss TEN2 068Z3348 R134a



Angleway valve body, inlet size 3/8 inch, outlet size 1/2 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar.



Tech specs:
Czynnik:
R134a
Capillary tube length [mm]:
1.500 mm
Maximum operating pressure:
34,0 bar
Przegrzanie statyczne (SS):
5,0
Inlet size:
3/8”
Typ:
TEN 2
Type of inlet connection:
Screw
Outlet connection type:
Śrubunek
Wyjście | Wyrównanie zewnętrzne:
1/2"x1/4"
Temperature range:
-40 ~ 10 °C
Pictures:
illustrative
