Evaporating pressure regulator Danfoss KVP 22 034L0025

Regulating range 0 - 5.5 bar, factory setting 2 bar, max. working pressure 18 bar.
Schraeder valve for pressure testing.

Producer: DANFOSS

Product code: AUDA_3009

Series:Danfoss_38_40

Size:

uniwersalny

Our price:

369,00 €

/ pc.

300,00 €

net / pc.

Quantity:

Add to wish list

Evaporating pressure regulator Danfoss KVP 22 034L0025

SERVICE MANUAL

Regulating range 0 - 5.5 bar, factory setting 2 bar, max. working pressure 18 bar.

Schraeder valve for pressure testing.

Characteristic	Value
Type	KVP 22
Factory setting	2,00 bar
Inlet connection type	SOLDER, ODF
Inlet size	7/8"
Inlet size	22 mm
Kv value [m/h]	2,5
Max. Test pressure	19,8 bar
Max. Working Pressure	18,0 bar
Medium temperature range	-45 - 105 °C
Outlet connection type	SOLDER, ODF
Outlet size	7/8"
Outlet size	22 mm
Rated capacity R134a	2,80 kW
Rated capacity R22	4,00 kW
Rated capacity R404A/R507	3,60 kW
Rated capacity R407C	3,70 kW
Refrigerant(s)	HCFC
Refrigerant(s)	HFC
Regulating range	0,0 - 5,5 bar

Tech specs:

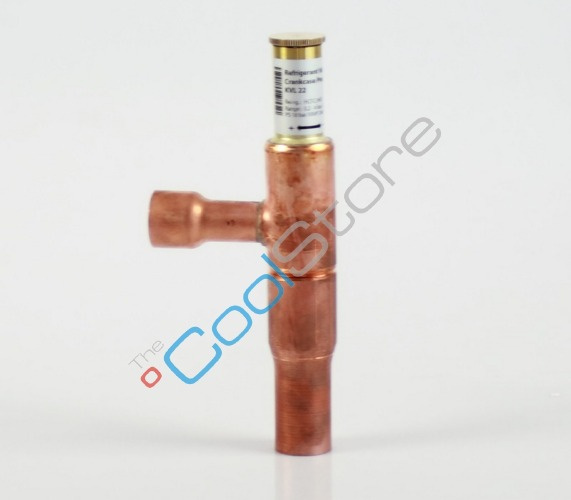

Pictures:	illustrative
