Product description

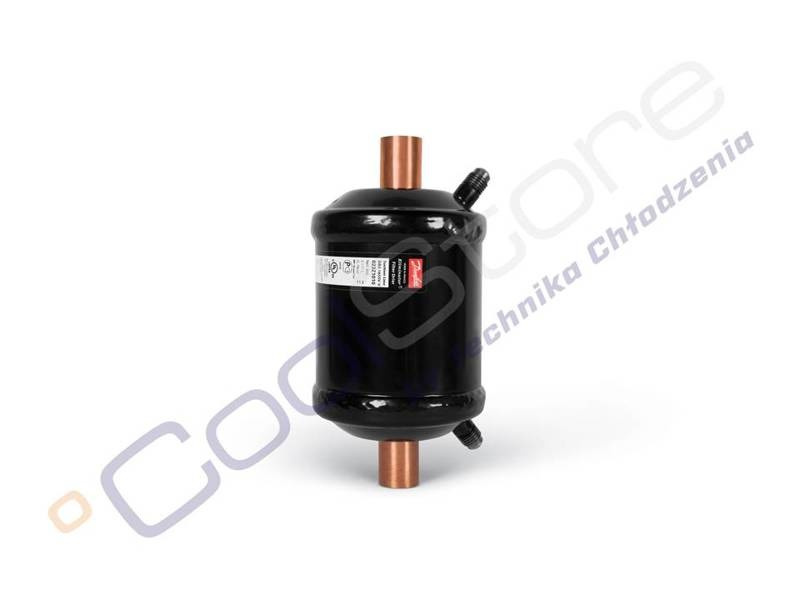

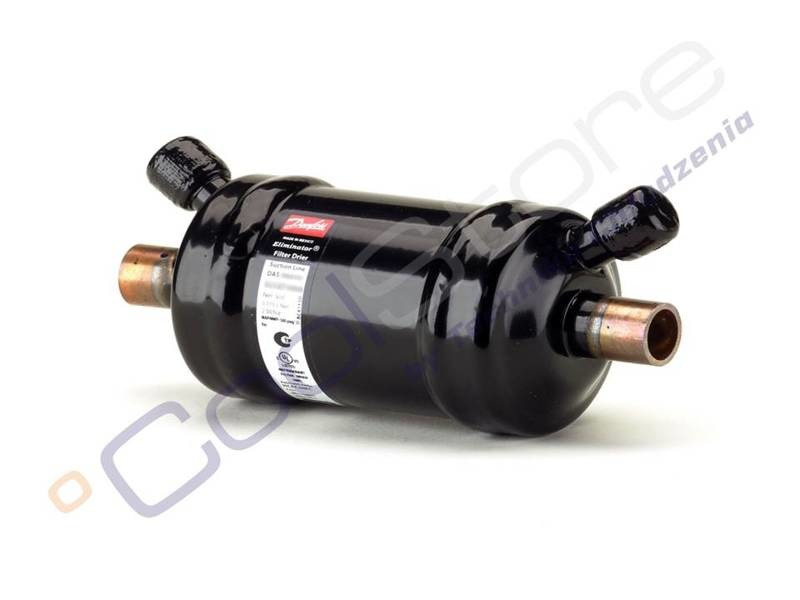

Burn-out filter drier Danfoss DAS 083W Flare 023Z1001
Burn-out filter drier for fluorinated refrigerants.
70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
2 Schraeder access valves to measure pressure drop across the drier.
Max. working pressure: 35 bar.
120 mesh wire mesh for solid particle retention.
|
Characteristic |
Value |
|
Catalogue number |
023Z1001 |
|
Solid core surface |
131 cm2 |
|
Nominal capacity |
170 cm3 |
|
Inlet connection size ODS |
3/8",10 mm |
|
TS (min ~ max) |
-40 ~ 70°C |
|
PS |
35 bar |
