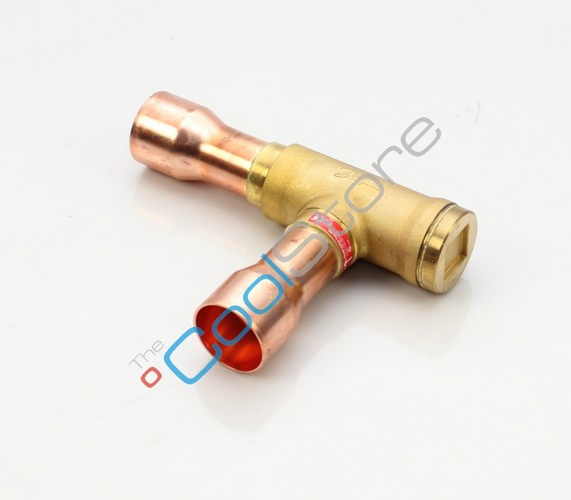

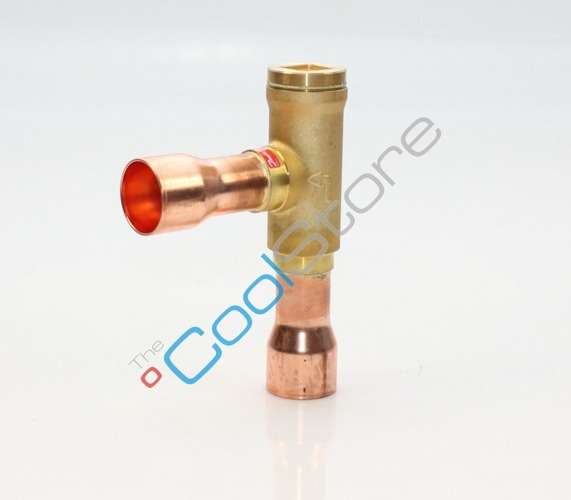

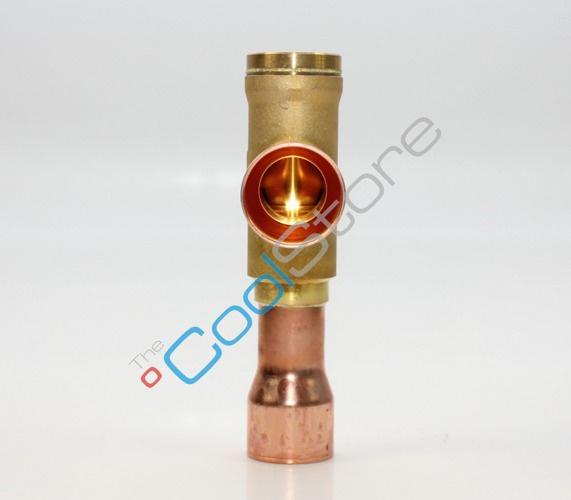

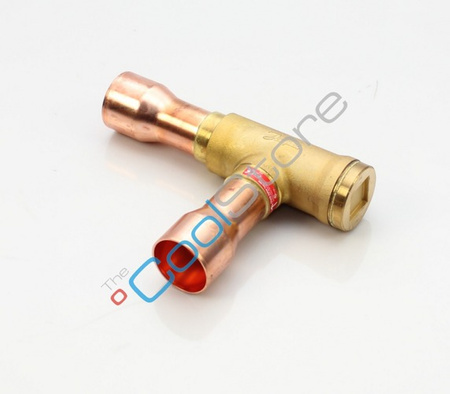

Check Valve Danfoss NRV 35s 42mm

  • Check Valve Danfoss NRV 35s 42mm
  • Check Valve Danfoss NRV 35s 42mm
  • Check Valve Danfoss NRV 35s 42mm
  • Check Valve Danfoss NRV 35s 42mm
Producer: DANFOSS
Product code: AUDA_8040
Series:Danfoss_38_40
313,65 €
/ pc.
255,00 €
net / pc.
Add to wish list
Check Valve Danfoss NRV 35s 42mm

TECHNICAL DATA

Characteristic

Value

Type

NRV 35s

Cv-value [USgal/min]

33,52

Direction

Angleway

Inlet connection type

Solder, ODF

Inlet size

42 mm

Kv-value [m³/h]

29,00

Max. test pressure [bar]

36,4 bar

Max. Working Pressure [bar]

46,0 bar

Outlet connection type

Solder, ODF

Outlet size

42 mm

Refrigerant(s)

CFC, HCFC, HFC

Temperature range [°C]

-50 ~140°C





Tech specs:
Pictures:
illustrative
