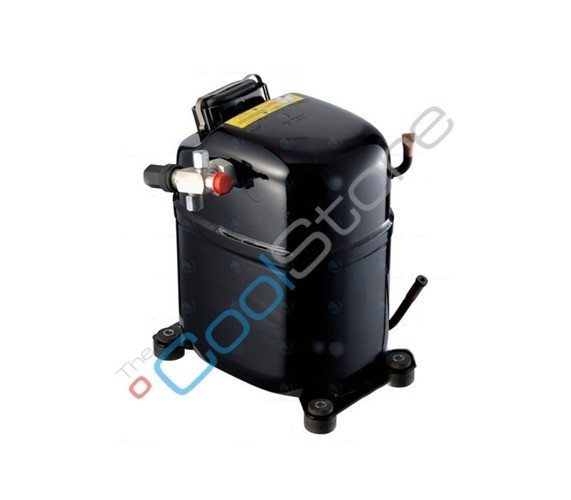

Compressor Tecumseh TAG4546Z TZ

Name: Compressor Tecumseh TAG4546Z TZ
Brand: Tecumseh
Price: 1102.08 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: SPLH_00022

Series:Sprężarki Tecumseh

Warranty: 12 months

Size:

uniwersalny

Our price:

1 102,08 €

/ pc.

896,00 €

net / pc.

Quantity:

Add to wish list

Compressor LH R404A/R507 TFH4524Z

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Condensing Temp.	-25ºC	-20ºC	-15ºC	-10ºC	-5ºC	0ºC	+5ºC	+10ºC	+15ºC
TFH4524Z	55 ºC	-	-	2733 W	3860 W	5170 W	6695 W	8467 W	10520 W	12886 W
TFH4524Z	45 ºC	-	2822 W	4035 W	5457 W	7122 W	9061 W	11307 W	13892 W	16850 W

Tech specs:

Part number:	TAG 4546Z TZ
volume:	90,20 cm3
Nominal capacity:	5457 W(-10ºC/+45ºC)
Refrigerant:	R404A
Power supply:	380 V / 50 Hz
Temperature range:	-15°C~+15°C
Oil Type:	POE / 1960 ml
Weight: net	44 kg
Factory flooded with oil:	Yes
Pictures:	illustrative
