Compressor Tecumseh FH 2511 Z FZ - FH 2511 Z XC

  • Compressor Tecumseh FH 2511 Z FZ - FH 2511 Z XC
Producer: Tecumseh
Product code: SPLH_00047
Series:Sprężarki Tecumseh
Warranty: 12 miesięcy
1 022,13 €
/ pc.
831,00 €
net / pc.
Add to wish list
Compressor LH R404A/R507  FH 2511 Z FZ - FH 2511 Z XC

TECHNICAL DATA


Model

Displacement

 Motor
type		 Refrigerant Voltage

Evaporating
temperature range

 Lubricant
(Charge/Type)		 Weight
FH2511Z 742 cm3 CSR R-404A/R507 230V / 50Hz

-40°C~-10°C

 POE  /1625 ml 37 kg

COOLING CAPACITY



Model

Evaporating Temp. / Cooling Capacity R404A/R507

Condensing Temp.

 -40ºC -35ºC -30ºC -25ºC -20ºC -15ºC -10ºC
FH2511Z 55 ºC - - 1290 W 1887 W 2577 W 3372 W 4286 W
45 ºC - 1263 W 1865 W 2564 W 3374 W 4306 W 5374 W


Download

TECHNICAL DATA





Tech specs:
Part number:
FH 2511Z FZ
volume:
74,20 cm3
Nominal capacity:
1865W (-30ºC/+45ºC)
Refrigerant:
R404A
Power supply:
230 V / 50 Hz
Temperature range:
-35°C ~ -10°C
Oil Type:
POE / 1330 ml
Weight:

net

37 kg
Factory flooded with oil:
Yes

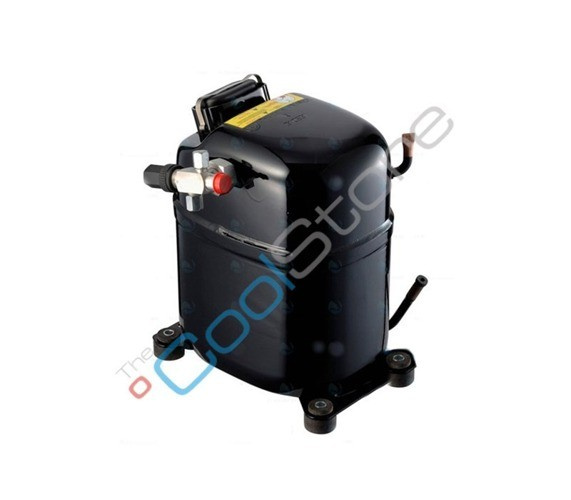

Pictures:
illustrative
