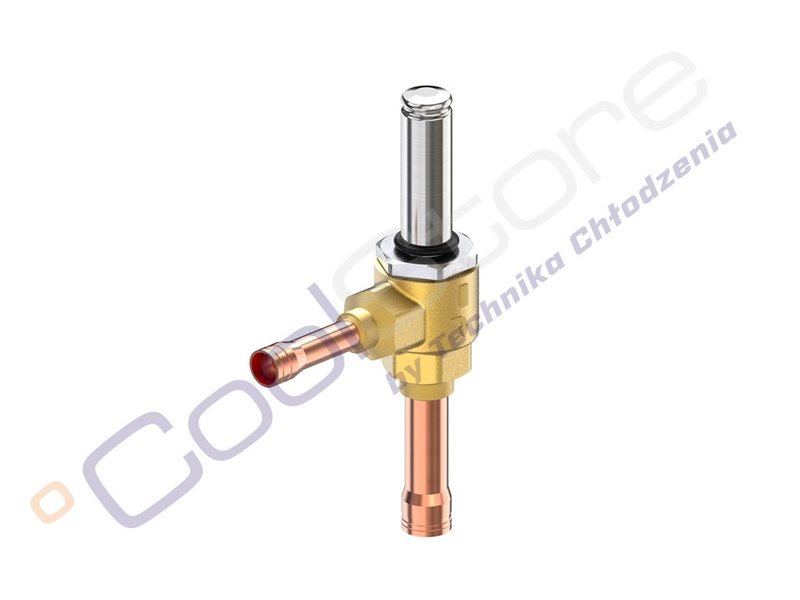

Elektroniczny zawór rozprężny AKV 15-3 068F5010

  • AKV jest sterowanym elektronicznie zaworem rozprężnym stosowanym w instalacjach chłodniczych.
  • Elektroniczny zawór rozprężny AKV 15-3 068F5010
Producer: DANFOSS
Product code: 068F5010
Series:Danfoss_38_40
642,06 €
/ pc.
522,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability



Tech specs:
Maksymalne ciśnienie pracy (MWP):
PS=42 bar g (AKV 15-4 PS 28 bar g)
MOPD:
22 bar
Nieszczelność gniazda zaworu:
< 0,02% wartość współ. KV
Obudowa wg IEC529:
maks. IP 67
Connection:
od -50°C do 60°C
Przyłącze wylotowe/ wejściowe:
22 mm
Temp. otoczenia:
od -40°C do 50°C
Temp. parowania:
od -50°C do 60°C
Tolerancja napiecia cewki:
+10 / -15%
Typ zaworu:
AKV 15
Wartość KV:
0,63 m3/h
Wydajność (404A/R507):
od 20 do 78 kW
Wydajność dla R134a:
53,3 kW
Wydajność dla R22:
64,3 kW
Wydajność dla R404A/R507:
49,4 kW
Wydajność dla R407C:
63,7 kW
Wymienny filtr:
zew. 100 µm
Regulation range:
do 10 do 100 %
Zalecany okres załączenia:
6 sekund
Zasada działania :
Modulacja Czasu Impulsu
Pictures:
illustrative
