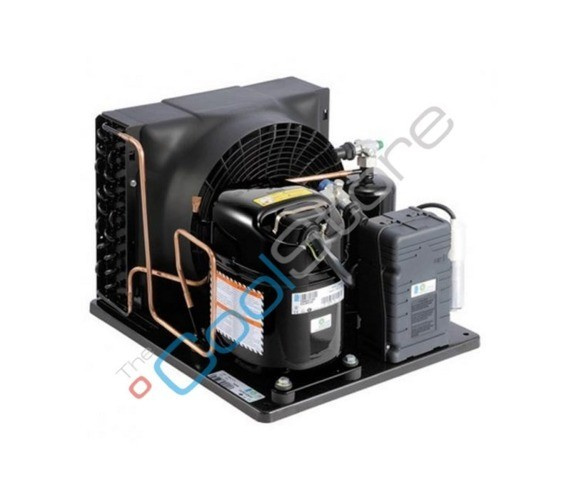

Condensing unit Tecumseh CAJN 9510 ZMHR FZ

Name: Condensing unit Tecumseh CAJN 9510 ZMHR FZ
Brand: Tecumseh
Price: 944.64 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: AGLH_00012

Series:Agregaty i sprężarki Tecumseh

Size:

uniwersalny

Our price:

944,64 €

/ pc.

768,00 €

net / pc.

Quantity:

Add to wish list

Condensing unit Tecumseh CAJN 9510 ZMHR FZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-25ºC	-20ºC	-15ºC	-10ºC	-5ºC	0ºC	+5ºC	+10ºC	+15ºC
CAJN 9510 ZMHR FZ	32 ºC	787 W	991 W	1214 W	1452 W	1703 W	1963 W	2226 W	2490 W	2749 W

Tech specs:

Part number:	CAJN 9510 ZMHR FZ
volume:	18,30 cm3
Nominal capacity:	1455 W (-10ºC/+32ºC)
Refrigerant:	R404A , R452A , R448A , R449A
Power supply:	230 V / 50 Hz
Temperature range:	-25°C~+15°C
Fan motors:	1 x 300 mm
Liquid receiver capacity:	1,5 L
Weight: net	33 kg
Pictures:	illustrative
