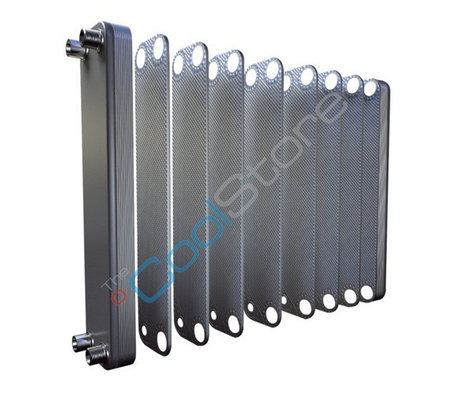

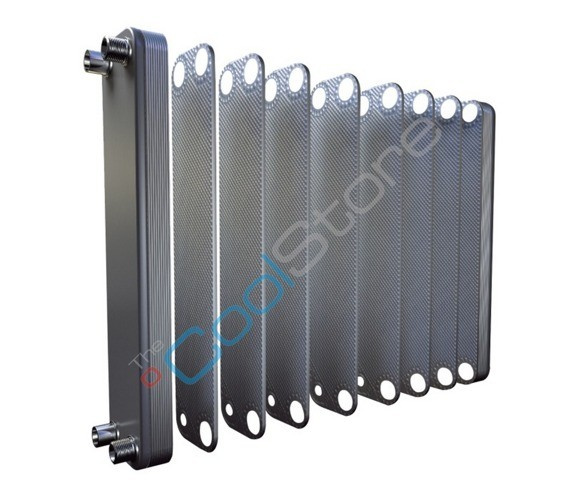

Micro plate heat exchangers Danfoss D55L-H-70 021H3603

  • With a robust and resource-efficient design, the D55 is designed to operate efficiently year after year in a whole range of applications.
  • Micro plate heat exchangers Danfoss D55L-H-70 021H3603
  • Micro plate heat exchangers Danfoss D55L-H-70 021H3603
Producer: DANFOSS
Product code: CHDA_00046
Series:Mikro-płytowe wymienniki ciepła
1 103,31 €
/ pc.
897,00 €
net / pc.
Add to wish list

Micro plate heat exchangers Danfoss D55L-H-70 021H3603

TECHNICAL DATA



Application: Condenser;

Max. working pressure: 45 bar;

Condenser rated capacity: 35,0 kW;

Conditions:

  • Condenser Design conditions (Ref.): R410a; Tskr = 40ºC; Przegrzanie 2K;
  • Condenser Design conditions (water): Twej = 32ºC; Twyj = 37ºC; Spadek ciśnienia 50kPa;

Number of plates: 70;

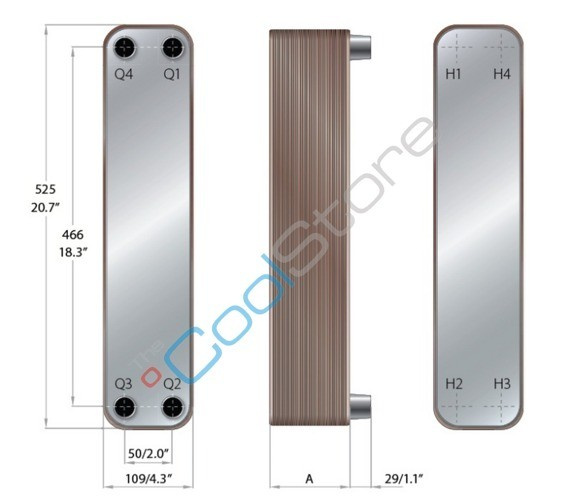

Connection type (Ref.):

  • Connection in thread / solder Q3: 1" / 7/8";
  • Connection out thread / solder Q4: 1" / 7/8";

Connection type (water):

  • Connection in thread / solder Q1 (gwint/lut): 1" / 7/8";
  • Connection out thread / solder Q2 (gwint/lut): 1" / 7/8";

Plate surface: 0,055 m2;

Exchanger surface: 3,85 m2;

Thickness (A): 112 mm;

If you are interested in the selection of the heat exchanger, please contact us:

info@coolstore.pl

Tech specs:
Pictures:
illustrative
