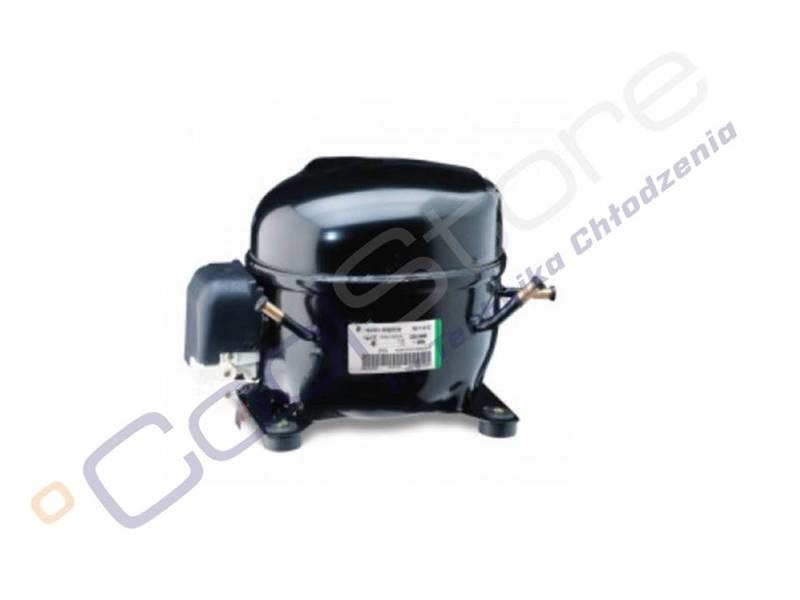

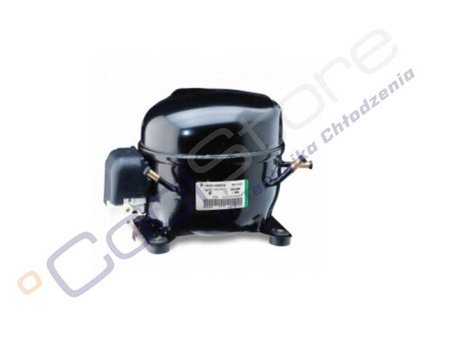

Compressor Aspera NJ9232GS

  • Compressor Aspera for small refrigeration units.
  • Compressor Aspera NJ9232GS
Producer: ASPERA (EMBRACO)
Product code: SPAS_346
Series:Agregaty i sprężarki Embraco
374,61 €
/ pc.
304,56 €
net / pc.
Add to wish list
Compressor Aspera NJ9232GS

TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage

Evaporating
temperature range

Lubricant (Charge/Type)

Weight Max. Height
NJ9232GS 26,11 cm3 R404A/R507 380V/50Hz -20°C~+10°C

POE 22 /750 ml

20,4 kg

 277 mm

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R404A/R507

Condensing Temp.

-20ºC

 -15ºC -10ºC -5ºC 0ºC +5ºC +10ºC
NJ9232GS 55 ºC -
 -
 1513 W 1911 W 2357 W 2853 W 3396 W
45 ºC 1166 W 1535 W 1972 W 2476 W 3047 W 3684 W 4388 W


Download

CATALOG



Tech specs:
Nominal capacity:
4030 W
Refrigerant:
R-404a
volume:
7,28 cm3
Power supply:
230 V / 50 Hz
Temperature range:
-20°C ~ +10°C
Oil Type:
POE 22 / 750 ml
Weight:

net

20,4 kg
Max. Height:
277,0 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
