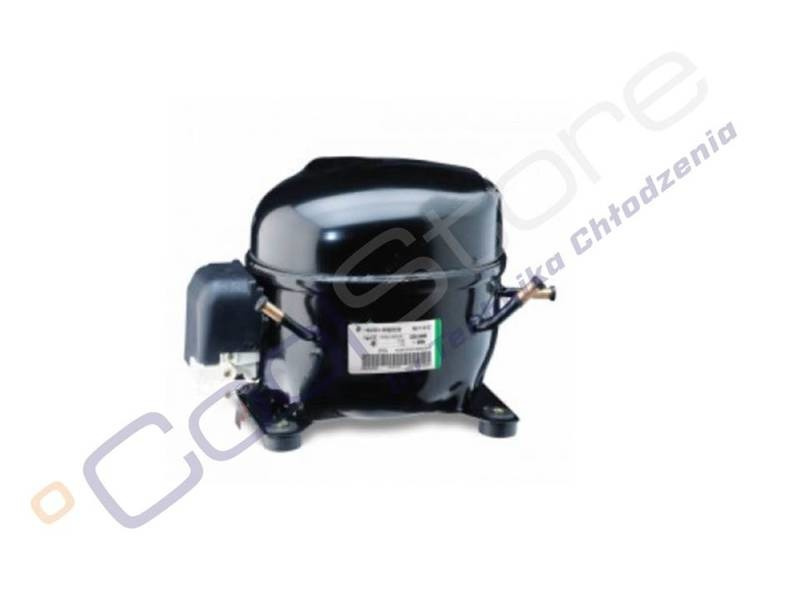

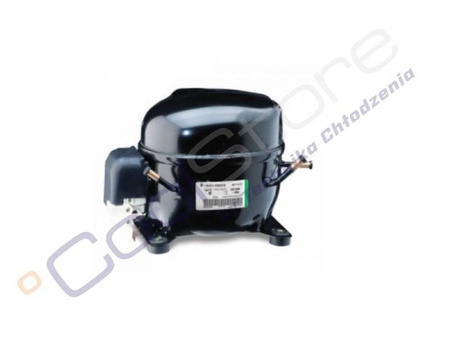

Compressor Aspera NJ9226GS

  • Compressor Aspera for small refrigeration units.
  • Compressor Aspera NJ9226GS
Producer: ASPERA (EMBRACO)
Product code: SPAS_335
Series:Agregaty i sprężarki Embraco
369,30 €
/ pc.
300,24 €
net / pc.
Add to wish list
Compressor Aspera NJ9226GS

TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage

Evaporating
temperature range

Lubricant (Charge/Type)

Weight Max. Height
NJ9226GS 21,71 cm3 R404A/R507 380V/50Hz -20°C~+10°C

POE 22 /750 ml

19,0 kg

 265 mm

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R404A/R507

Condensing Temp.

-20ºC

 -15ºC -10ºC -5ºC 0ºC +5ºC +10ºC
NJ9226GS 55 ºC -
 -
 1278 W 1609 W 1980 W 2389 W 2838 W
45 ºC 989 W 1301 W 1667 W 2086 W 2560 W 3087 W 3668 W


Download

CATALOG



Tech specs:
Nominal capacity:
3248 W
Refrigerant:
R-404a
volume:
21,71 cm3
Power supply:
230 V / 50 Hz
Temperature range:
-20°C ~ +10°C
Oil Type:
POE 22 / 750 ml
Weight:

net

19,0 kg
Max. Height:
265,0 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
