Compressor Tecumseh TAG4581Z TZ

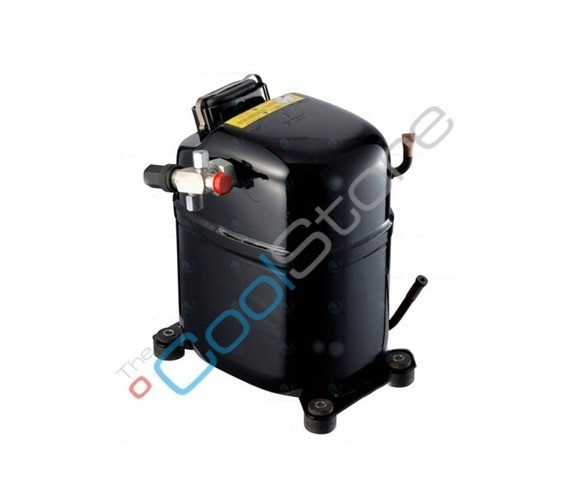

  • Compressor Tecumseh TAG4581Z TZ
Producer: Tecumseh
Product code: SPLH_00026
Series:Sprężarki Tecumseh
Warranty: 12 miesięcy
1 435,41 €
/ pc.
1 167,00 €
net / pc.
Add to wish list

Compressor LH R404A/R507 TAG4581Z

COOLING CAPACITY



Model

Evaporating Temp. / Cooling Capacity R404A/R507

Condensing Temp.

 -25ºC -20ºC -15ºC -10ºC -5ºC 0ºC +5ºC +10ºC +15ºC
TAG4581Z 55 ºC - - 5953 W 7767 W 9777 W 12029 W 14573 W 17456 W 20727 W
45 ºC - 6035 W 7960 W 10125 W 12577 W 15364 W 18536 W 22139 W 26223 W



Tech specs:
Part number:
TAG 4581Z TZ
volume:
145,00 cm3
Nominal capacity:
10072 W (-10ºC/+45ºC)
Refrigerant:
R404A
Power supply:
380 V / 50 Hz
Temperature range:
-15°C~+15°C
Oil Type:
POE / 1960 ml
Weight:

net

48,1 kg
Factory flooded with oil:
Yes
Pictures:
illustrative
