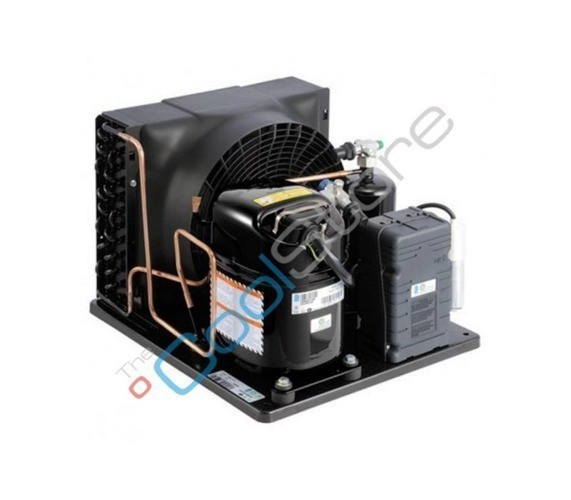

Condensing unit Tecumseh TAJN 2446 ZBR TZ

Agregat skraplający przeznaczony do pracy w niskich temperaturach.

Producer: Tecumseh

Product code: AGLH_00041

Size:

Our price:

890,52 €

/ pc.

724,00 €

net / pc.

Quantity:

Condensing unit Tecumseh TAJN 2446 ZBR TZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-40ºC	-35ºC	-30ºC	-25ºC	-20ºC	-15ºC	-10ºC
TAJN 2446 ZBR TZ	32 ºC	461 W	635 W	831 W	1049 W	1284 W	1532 W	1789 W

Tech specs:

Part number:	TAJN 2446 ZBR TZ
volume:	26,20 cm3
Nominal capacity:	831 W (-30ºC/+32ºC)
Refrigerant:	R404A , R452A , R448A , R449A
Power supply:	380 V / 50 Hz
Temperature range:	-40°C~-10°C
Fan motors:	1 x 300 mm
Liquid receiver capacity:	2,35 L
Weight: net	33 kg
Pictures:	illustrative

TAJN 2446 ZBR TZ Download
