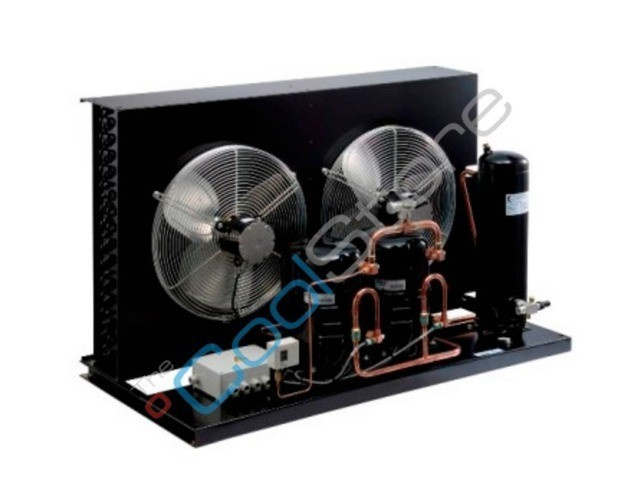

Condensing unit Tecumseh TAGDT 2544 ZBR TZ

Name: Condensing unit Tecumseh TAGDT 2544 ZBR TZ
Brand: Tecumseh
Price: 5712.12 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: AGLH_00057

Series:Agregaty i sprężarki Tecumseh

Size:

uniwersalny

Our price:

5 712,12 €

/ pc.

4 644,00 €

net / pc.

Quantity:

Add to wish list

Condensing unit Tecumseh TAGDT 2544 ZBR TZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-40ºC	-35ºC	-30ºC	-25ºC	-20ºC	-15ºC	-10ºC
TAGDT 2544 ZBR TZ	32 ºC	4279 W	5944 W	7853 W	9981 W	12292 W	14760 W	17353 W

Tech specs:

Part number:	TAGDT 2544 ZBR TZ
volume:	269,60 cm3
Nominal capacity:	7853 W (-30ºC/+32ºC)
Refrigerant:	R404A , R452A , R448A , R449A
Power supply:	380 V / 50 Hz
Temperature range:	-40°C~-10°C
Fan motors:	2 x 420 mm
Liquid receiver capacity:	6,0 L
Weight: net	161 kg
Pictures:	illustrative

TAGDT 2544 ZBR TZ Download
