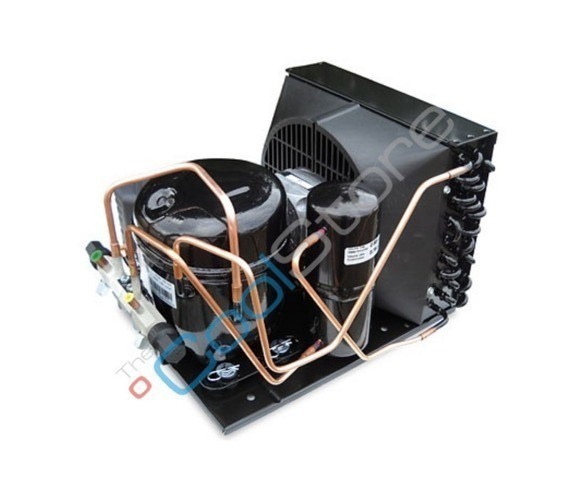

Condensing unit Tecumseh AET 4450 ZHR FZ
COOLING CAPACITY
Model |
Evaporating Temp. / Cooling Capacity R404A/R507 |
|||||||||
Ambient |
-25ºC | -20ºC | -15ºC | -10ºC | -5ºC | 0ºC | +5ºC | +10ºC | +15ºC | |
AET 4450 ZHR FZ | 32 ºC | - | 509 W | 642 W | 746 W | 874 W | 1005 W | 1139 W | 1271 W | 1401 W |
Tech specs:
Part number: | AET 4450 ZHR FZ |
volume: | 8,85 cm3 |
Nominal capacity: | 746 W (-10ºC/+32ºC) |
Refrigerant: | R404A ,
R452A ,
R448A ,
R449A |
Power supply: | 230 V / 50 Hz |
Temperature range: | -20°C~+15°C |
Fan motors: | 1 x 250 mm |
Liquid receiver capacity: | 0,75 L |
Weight: net | 24,9 kg |
Pictures: | illustrative |
