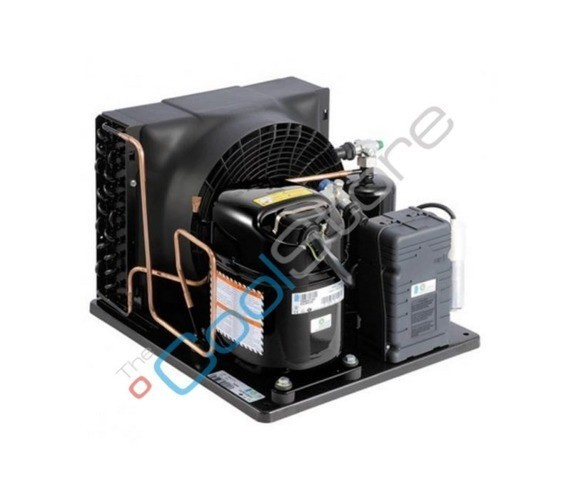

Condensing unit Tecumseh CAJN 9480 ZMHR FZ

Name: Condensing unit Tecumseh CAJN 9480 ZMHR FZ
Brand: Tecumseh
Price: 881.91 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: CAJN 9480 ZMHR FZ

Series:Agregaty i sprężarki Tecumseh

Size:

uniwersalny

Our price:

881,91 €

/ pc.

717,00 €

net / pc.

Quantity:

Add to wish list

Condensing unit Tecumseh CAJN 9480 ZMHR FZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-25ºC	-20ºC	-15ºC	-10ºC	-5ºC	0ºC	+5ºC	+10ºC	+15ºC
CAJN 9480 ZMHR FZ	32 ºC	637 W	811 W	1004 W	1212 W	1435 W	1670 W	1914 W	2162 W	2410 W

Tech specs:

Part number:	CAJN 9480 ZMHR FZ
volume:	15,20 cm3
Nominal capacity:	1212 W (-10ºC/+32ºC)
Refrigerant:	R404A , R452A , R448A , R449A
Power supply:	230 V / 50 Hz
Temperature range:	-25°C~+15°C
Fan motors:	1 x 300 mm
Liquid receiver capacity:	1,5 L
Weight: net	33 kg
Pictures:	illustrative
