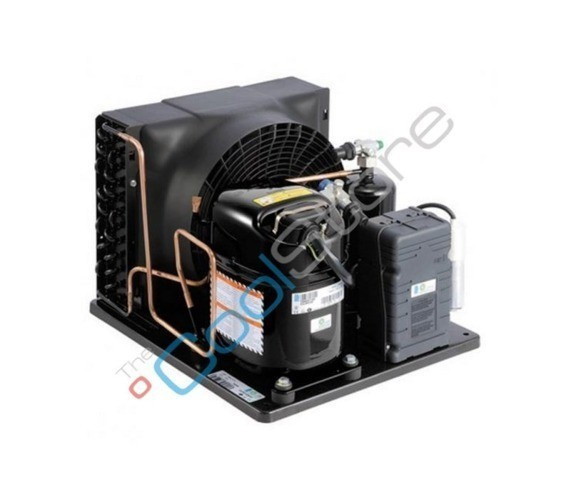

Condensing unit Tecumseh TAJN 9480 ZMHR TZ

Name: Condensing unit Tecumseh TAJN 9480 ZMHR TZ
Brand: Tecumseh
Price: 876.99 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: AGLH_00011

Series:Agregaty i sprężarki Tecumseh

Size:

uniwersalny

Our price:

876,99 €

/ pc.

713,00 €

net / pc.

Quantity:

Add to wish list

Condensing unit Tecumseh TAJN 9480 ZMHR TZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-25ºC	-20ºC	-15ºC	-10ºC	-5ºC	0ºC	+5ºC	+10ºC	+15ºC
TAJN 9480 ZMHR TZ	32 ºC	640 W	820 W	1018 W	1233 W	1465 W	1709 W	1964 W	2224 W	2488 W

Tech specs:

Part number:	TAJN 9480 ZMHR TZ
volume:	15,20 cm3
Nominal capacity:	1233 W (-10ºC/+32ºC)
Refrigerant:	R404A , R452A , R448A , R449A
Power supply:	380 V / 50 Hz
Temperature range:	-25°C~+15°C
Fan motors:	1 x 300 mm
Liquid receiver capacity:	1,5 L
Weight: net	32,00 kg
Pictures:	illustrative
