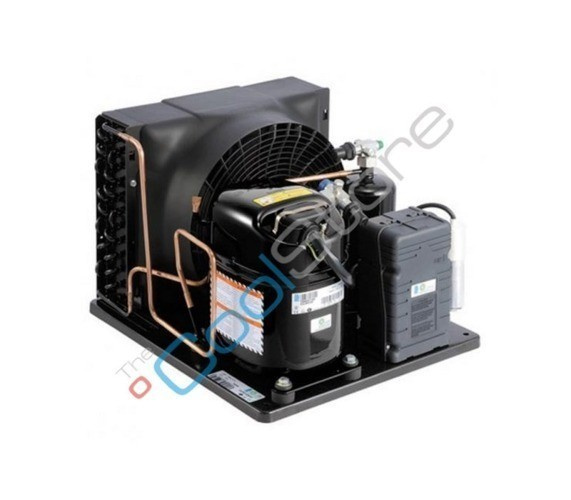

Condensing unit Tecumseh TAJN 9510 ZMHR TZ

Name: Condensing unit Tecumseh TAJN 9510 ZMHR TZ
Brand: Tecumseh
Price: 894.21 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: AGLH_00013

Series:Agregaty i sprężarki Tecumseh

Size:

uniwersalny

Our price:

894,21 €

/ pc.

727,00 €

net / pc.

Quantity:

Add to wish list

Condensing unit Tecumseh TAJN 9510 ZMHR TZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-25ºC	-20ºC	-15ºC	-10ºC	-5ºC	0ºC	+5ºC	+10ºC	+15ºC
TAJN 9510 ZMHR TZ	32 ºC	797 W	1002 W	1224 W	1462 W	1712 W	1971 W	2235 W	2501 W	2765 W

Tech specs:

Part number:	TAJN 9510 ZMHR TZ
volume:	18,30 cm3
Nominal capacity:	1462 W (-10ºC/+32ºC)
Refrigerant:	R404A , R452A , R448A , R449A
Power supply:	380 V / 50 Hz
Temperature range:	-25°C~+15°C
Fan motors:	1 x 300 mm
Liquid receiver capacity:	1,5 L
Weight: net	31,00 kg
Pictures:	illustrative
