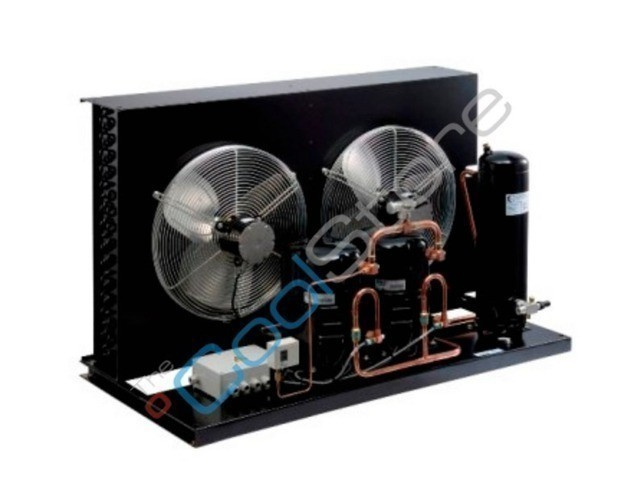

Condensing unit Tecumseh TAGDT 4615 ZHR TZ

Name: Condensing unit Tecumseh TAGDT 4615 ZHR TZ
Brand: Tecumseh
Price: 6475.95 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: AGLH_00036

Series:Agregaty i sprężarki Tecumseh

Size:

uniwersalny

Our price:

6 475,95 €

/ pc.

5 265,00 €

net / pc.

Quantity:

Add to wish list

Condensing unit Tecumseh TAGDT 4615 ZHR TZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-25ºC	-20ºC	-15ºC	-10ºC	-5ºC	0ºC	+5ºC	+10ºC	+15ºC
TAGDT 4615 ZHR TZ	32 ºC	10340 W	13665 W	17218 W	20964 W	24845 W	28813 W	32866 W	37088 W	41692 W

Tech specs:

Part number:	TAGDT 4615 ZHR TZ
volume:	269,60 cm3
Nominal capacity:	20964 W (-10ºC/+32ºC)
Refrigerant:	R404A , R452A
Power supply:	380 V / 50 Hz
Temperature range:	-25°C~+15°C
Fan motors:	2 x 500 mm
Liquid receiver capacity:	12,0 L
Weight: net	217,00 kg
Pictures:	illustrative

TAGDT 4615 ZHR TZ Download
