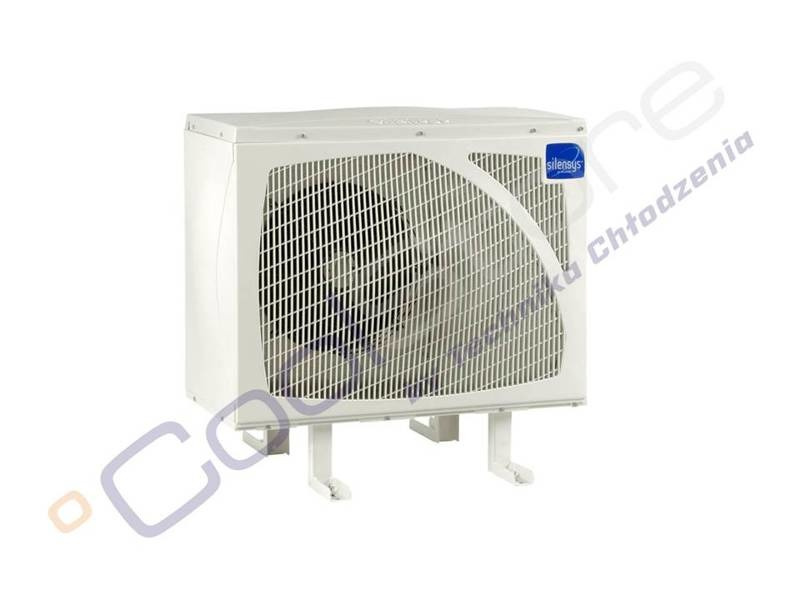

Condensing unit Tecumseh "SILENSYS VERSION 3" SILAJ 4517 Z FZ
COOLING CAPACITY
Model |
Evaporating Temp. / Cooling Capacity R404A/R507 |
|||||||||
Ambient |
-25ºC | -20ºC | -15ºC | -10ºC | -5ºC | 0ºC | +5ºC | +10ºC | +15ºC | |
SILAJ 4517 Z FZ | 32 ºC | - | 1536 W | 1899 W | 2296 W | 2726 W | 3189 W | 3683 W | 4211 W | 4778 W |
Tech specs:
Part number: | SILAJ 4517 Z FZ |
volume: | 25,95 cm3 |
Nominal capacity: | 2296 W (-10ºC/+32ºC) |
Refrigerant: | R404A ,
R452A ,
R448A ,
R449A |
Power supply: | 230 V / 50 Hz |
Temperature range: | -20°C~+15°C |
Fan motors: | 1 x 360 mm |
Liquid receiver capacity: | 2,35 L |
Typ obudowy: | S |
Sound level: | 36 dB(A) (10 m) |
Weight: net | 73,00 kg |
Pictures: | illustrative |
