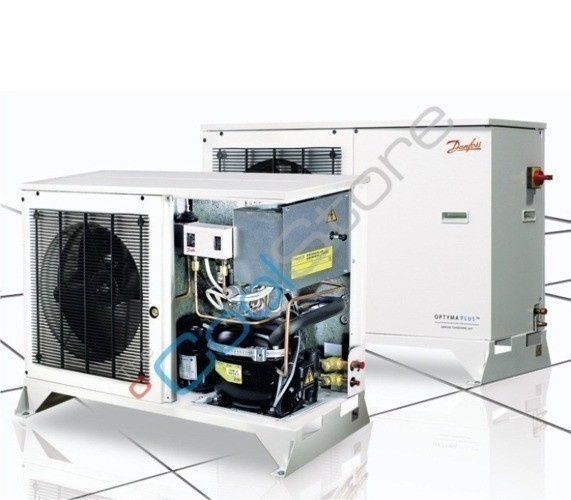

Agregat skraplający Danfoss Optyma OP-MPUM162MLP00E

  • OPTYMA PLUS™ – ciche agregaty skraplające do szybkiej instalacji. Łączy w sobie wysoką wydajność przy małych gabarytach jednostki, cichą pracę i obudowę odporną na warunki atmosferyczne.
  • Agregat skraplający Danfoss Optyma OP-MPUM162MLP00E
Producer: DANFOSS
Product code: OP-MPUM162MLP00E
Series:Danfoss_38_40
10 528,80 €
/ pc.
8 560,00 €
net / pc.
Add to wish list

Agregat skraplający Danfoss Optyma OP-MPUM162MLP00E

DANE TECHNICZNE



Charakterystyka Wartość
Typ OP-MPUM162
Sprężarka MLZ076
Zasilanie 400V / 3 faza / 50Hz
Przyłącze ssawne 1 1/8"
Przyłacze tłoczne

3/4"
Waga 144 kg
Wymiary (wys.xszer.xdł.) 966x1800x600 mm
Średnica went. 2x609 mm
Pobór mocy przy temp. parowania -10ºC / 5ºC 8650 W / 9750 W
Objętość zbiornika [l]
 10

Warunki testu: EN 13215.
Przegrzanie czynnika na ssaniu 10K (114X3356: 20K przy -45°C).
Wydajność dla temperatury otoczenia 32°C.
Wydajności dla innych wartości temperatur otoczenia – patrz literatura techniczna.


Temp. otoczenia Wydajność chłodnicza [W]
-20ºC -15ºC -10ºC -5ºC 0ºC 5ºC 10ºC
27ºC 12750 15350 18200 21300 24750 28550 32650
32ºC 11650 13950 16500 19300 22400 25850 29650
38ºC 10250 12200 14400 16800 19450 22500 25850
43ºC 9100 10750 12550 14600 16900 19550 22600
