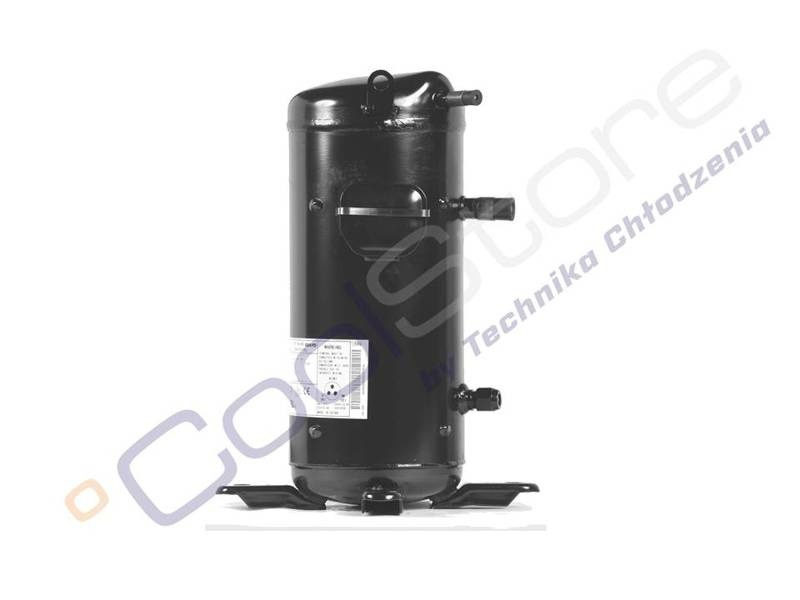

Compressor Scroll Sanyo C-SBS180H15A 14,48 kW R407C 230V

  • Compressor Scroll Panasonic
  • Compressor Scroll Sanyo C-SBS180H15A 14,48 kW R407C 230V
Producer: Panasonic
Product code: SPSC_091B
Series:Sprężarki scroll Panasonic
832,71 €
/ pc.
677,00 €
net / pc.
Add to wish list

Compressor Scroll Sanyo C-SBS180H15A 14,48 kW R407C 230V

TECHNICAL DATA

Model

Displacement

Refrigerant

 Voltage Evaporating
temperature range

Lubricant typ

 Weight Sound
level
C-SBS180H15A 83,2 cm3 R407C,R404a
R134a,R407F		 220-240V / 50Hz M/HBP

FV68S

 40 kg 61 dB

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R407C

Condensing Temp.

 -15ºC -10ºC -6,7ºC 0ºC +4,4ºC +7,2ºC +10ºC +12ºC
C-SBS180H15A 54,4 ºC - 7,71 kW 8,73 kW 11,22 kW 13,23 kW 14,70 kW 16,33 kW 17,60 kW
45 ºC 7,14 kW 8,59 kW 9,71 kW 12,46 kW 14,68 kW 16,29 kW 18,07 kW 19,47 kW



 TECHNICAL DRAWING





Tech specs:
Pictures:
illustrative
