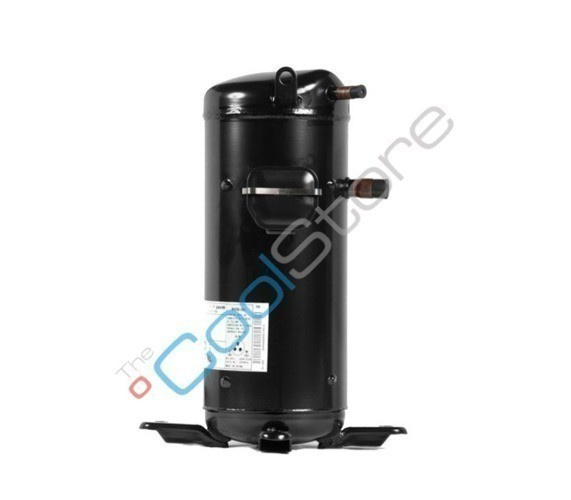

Compressor Scroll Panasonic C-SBP170H38A 14,29 kW R410A 400V

  • Compressor Scroll Panasonic
  • Compressor Scroll Panasonic C-SBP170H38A 14,29 kW R410A 400V
Producer: Panasonic
Product code: SPSC_285
Series:Sprężarki scroll Panasonic
806,88 €
/ pc.
656,00 €
net / pc.
Add to wish list

Compressor Scroll  Panasoni C-SBP170H38A 14,29 kW R410A 400V



TECHNICAL DATA

Model

Displacement

Refrigerant

 Voltage Evaporating
temperature range

Lubricant typ

 Weight Sound
level
C-SBP170H38A 55,7 cm3 R410A 380-415V / 50Hz M/HBP

FV68S

 39 kg 59 dB

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R410A

Condensing Temp.

 -15ºC -10ºC -6,7ºC 0ºC +4,4ºC +7,2ºC +10ºC +12ºC
C-SBP170H38A 54,4 ºC - 7,41 kW 8,41 kW 10,86 kW 12,84 kW 14,29 kW 15,90 kW 17,16 kW
45 ºC 7,12 kW 8,61 kW 9,76 kW 12,59 kW 14,89 kW 16,56 kW 18,42 kW 19,87 kW



 TECHNICAL DRAWING





Tech specs:
Factory flooded with oil:
Yes
Pictures:
illustrative
