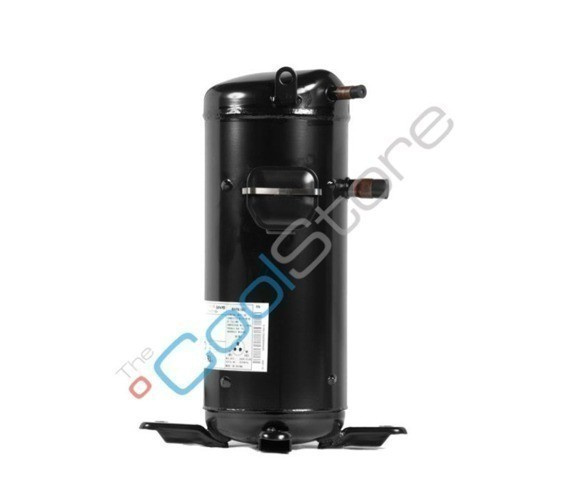

Compressor Scroll Panasonic C-SBP120H38B 10 kW R410A 400V

  • Compressor Scroll Panasonic
  • Compressor Scroll Panasonic C-SBP120H38B 10 kW R410A 400V
Producer: Panasonic
Product code: SPSC_235
Series:Sprężarki scroll Panasonic
841,32 €
/ pc.
684,00 €
net / pc.
Add to wish list

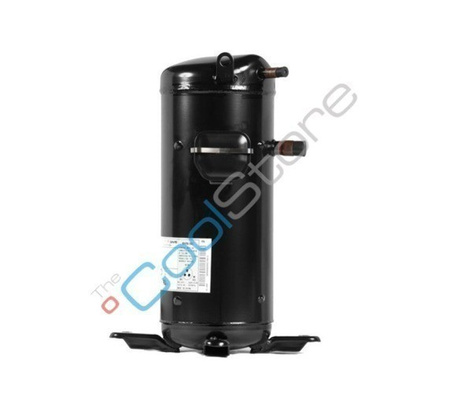

Compressor Scroll  Panasoni C-SBP120H38B 10 kW R410A 400V



TECHNICAL DATA

Model

Displacement

Refrigerant

 Voltage Evaporating
temperature range

Lubricant typ

 Weight Sound
level
C-SBP120H38B 39,9 cm3 R410A 380-415V / 50Hz M/HBP

FV68S

 39 kg 58 dB

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R410A

Condensing Temp.

 -15ºC -10ºC -6,7ºC 0ºC +4,4ºC +7,2ºC +10ºC +12ºC
C-SBP120H38B 54,4 ºC - 5,11 kW 5,81 kW 7,55 kW 8,97 kW 10,00 kW 11,15 kW 12,06 kW
45 ºC 4,84 kW 5,89 kW 6,71 kW 8,73 kW 10,37 kW 11,57 kW 12,92 kW 13,97 kW



 TECHNICAL DRAWING





Tech specs:
Factory flooded with oil:
Yes
Pictures:
illustrative
