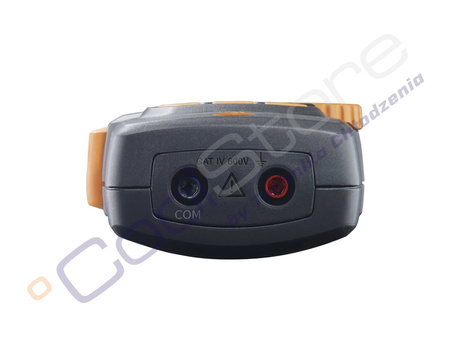

TRMS CLAMP METER 770-1 TESTO 0590 7701
The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.
Tech specs:
| Dimensions: | 243 x 96 x 43 mm |
| Warranty: | 2 years |
Weight: net | 378 g |
| Overvoltage Category: | CAT IV 600V; CAT III 1000V |
| Authorizations: | TÜV; CSA; CE |
| Measuring range (DC): | 4,000 V / 1 mV ,
40,00 V / 10 mV ,
400,0 V / 100 mV ,
600 V / 1 V |
| Accuracy (DC): | ±(0.8 % of mv + 3 Digit) |
| Measuring range (AC): | 4,000 V / 1 mV ,
40,00 V / 10 mV ,
400,0 V / 100 mV ,
600 V / 1 V |
| Accuracy (AC): | ±(1.0 % of mv + 3 Digit) |
| Measuring range (DC current): | 400 A / 0,1 A |
| Accuracy (DC current): | ±(2 % of mv + 5 Digit) |
| Measuring range (AC current) : | 400 A / 0,1 A |
| Accuracy (AC current) : | ±(2 % of mv + 5 Digit) |
| Measuring range (resistance) : | 400,0 Om / 0,1 Om ,
4,000 kOm / 1 Om ,
40,00 kOm / 10 Om ,
400,0 kOm / 100 Om ,
4,000 MOm / 1 kOm ,
40,000 MOm / 10 kOm |
| Accuracy (resistance) : | ±(1.5 % of mv + 3 Digit) |
| Measuring range (capacitance) : | 51,20 nF / 0,01 nF ,
512,0 nF / 0,1 nF ,
5,120 μF / 0,001 μF ,
51,20 μF / 0,01 μF ,
100 μF / 0,1 μF |
| Accuracy (capacitance) : | ±(1.5 % of mv + 5 Digit) |
| Measuring range (frequency) : | 99,99 Hz / 0,01 Hz ,
999,9 Hz / 0,1 Hz ,
9,999 kHz / 1 Hz |
| Accuracy (frequency) : | ±(0,1 % + 1 Cyfr(a)(y)) |
| Diode test: | yes |
| Continuity testing: | yes |
| Display ligthing: | yes |
| Hold: | yes |
| Min/Max: | yes |
| True RMS: | yes |
| Inrush current measurement: | yes |
| Display: | 4 000 |
| Pictures: | illustrative |
