Vertical liquid receivers GVN 90 l

  • Vertical liquid receivers GVN 90 l
  • Vertical liquid receivers GVN 90 l
Producer: GVN
Product code: ZBGV_120
Series:Zbiorniki i separatory - GVN
1 083,63 €
/ pc.
881,00 €
net / pc.
Add to wish list

Vertical liquid receivers GVN 90 l

Horyizontal &Vertical liquid Receivers with sight glasses

Model

Volume

[cm3]

 Connections
Inside
rotalock;
 Outside
rotalock;
HVLR-9D-F/F-90 90 1 3/4" -1 1/8" 1 3/4" -1 1/8"




Work
pressure

 Test

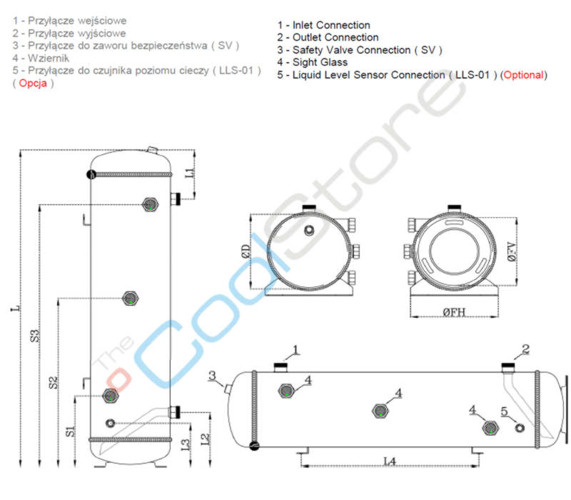

pressure		 Dimensions
D
[mm]		 L
[mm]		 L1
[mm]		 L2
[mm]		 L3
[mm]		 L4
[mm]
33 Bar 48 Bar Ø 324 1260 220 240 180 650















Tech specs:

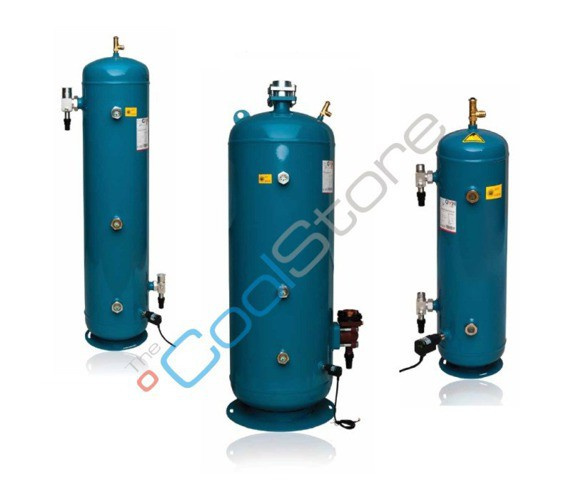

Pictures:
illustrative
