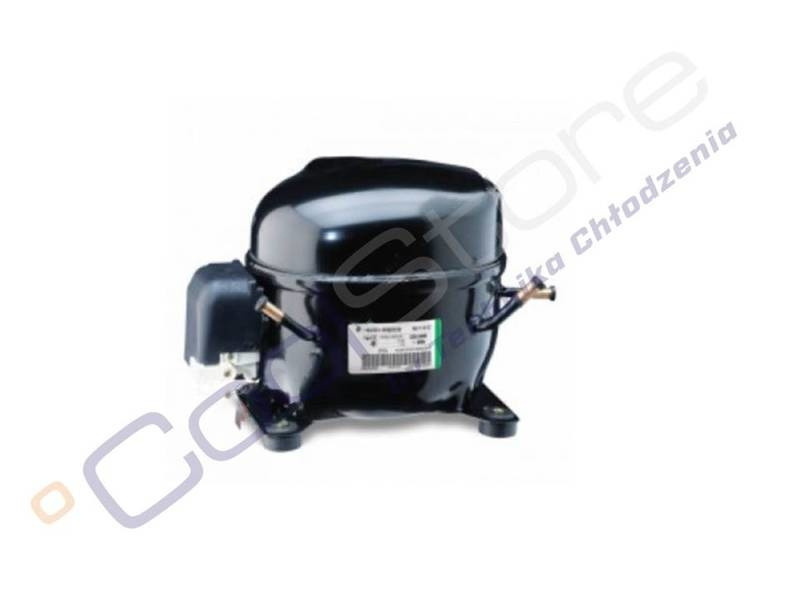

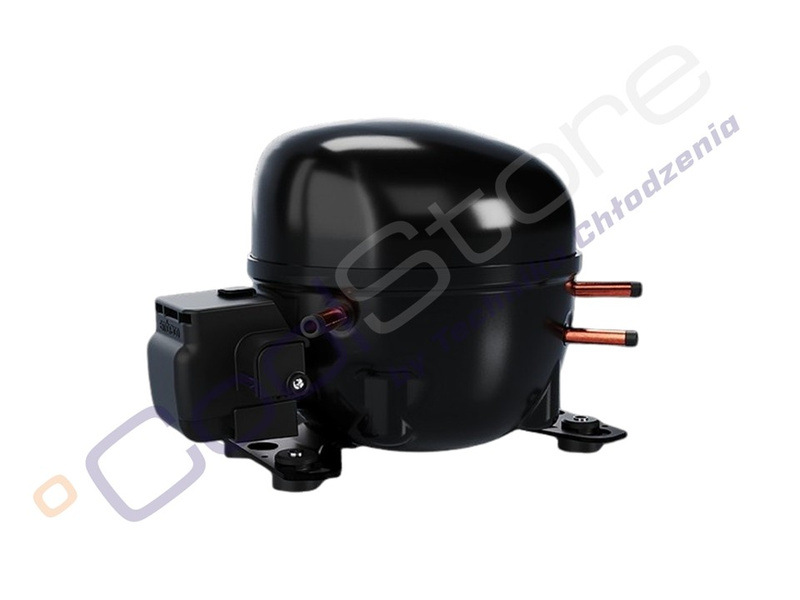

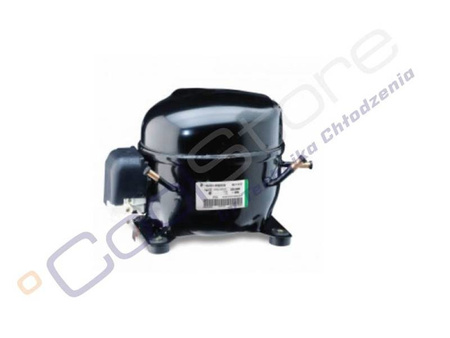

Compressor Aspera NJ6226Z
TECHNICAL DATA
Model |
Displacement |
Refrigerant | Voltage |
Evaporating |
Lubricant (Charge/Type) |
Weight | Max. Height |
NJ6226Z | 34,38 cm3 | R-134a | 380V/50Hz | -15°C~+10°C |
POE 22 /750 ml |
20,2 kg |
265 mm |
Cooling Capacity
Model |
Evaporating Temp. / Cooling Capacity R-134a |
||||||
Condensing Temp. |
-15ºC | -10ºC | -5ºC | 0ºC | +5ºC | +10ºC | |
NJ6226Z | 55 ºC | 878 W | 1214 W | 1589 W | 2004 W | 2457 W | 2950 W |
45 ºC | 1304 W | 1644 W | 2044 W | 2539 W | 3027 W | 3608 W |
Tech specs:
Factory flooded with oil: | Yes |
Pictures: | illustrative |
