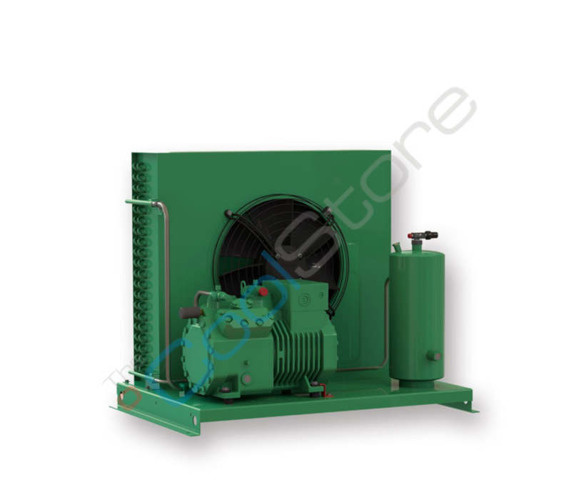

Condensing unit with compressor BITZER AA-BK-135/4PES-15Y

  • Condensing unit with compressor BITZER 4PES-15Y
  • Condensing unit with compressor BITZER AA-BK-135/4PES-15Y
Producer: BITZER
Product code: AGBI_00034
Series:Agregaty skraplające Bitzer
9 063,87 €
/ pc.
7 369,00 €
net / pc.
Add to wish list
Condensing unit with compressor BITZER AA-BK-135/4PES-15Y


Model

Cond.

temp.

Cooling capacity
(Q)[kW]


Evaporating temperature

 R-404a
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC
  AA-BK-135/4PES-15Y
 27 ºC Q 46,78 40,12 34,01 28,46 23,47 19,04 15,17 11,80
P 12,62 11,60 10,58 9,57 8,56 7,57 6,60 5,66
32 ºC Q 42,97 36,79 31,13 26,00 21,40 17,32 13,74 10,65
P 13,35 12,22 11,09 9,97 8,86 7,78 6,72 5,70
43ºC Q 34,59 29,49 24,85 20,66 16,93 13,62 10,72 8,20
P 14,79 13,41 12,05 10,70 9,39 8,11 6,88 5,72



Tech specs:
Part number:
AA-BK-135/4PES-15Y
Displacement at 1450 min-1:
48,5 m3/h
Number of cylinders:
2
Gaz connection:
Liquid line 7/8"
,
Suction line 1 5/8"
Fan:
2 / Ø 500 mm
Wydajność wentylatora:
15000 m3/h
Liquid receiver capacity:
30 dm3
Weight:

net

329 kg
Pictures:
illustrative
