Condensing unit with compressor BITZER AA-BK-135/4FE-28Y

  • Condensing unit with compressor BITZER AA-BK-135/4FE-28Y
  • Condensing unit with compressor BITZER AA-BK-135/4FE-28Y
Producer: BITZER
Product code: AGBI_00042
Series:Agregaty skraplające Bitzer
11 033,10 €
/ pc.
8 970,00 €
net / pc.
Add to wish list
Condensing unit with compressor BITZER AA-BK-135/4FE-28Y
Model

Cond.

temp.

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC
AA-BK-135/4FE-28Y 27 ºC Q - - 59,39 51,91 44,75 37,99 31,67 25,86
P - - 27,49 24,61 21,86 19,25 16,77 14,45
32 ºC Q - - 54,21 47,46 40,97 34,82 29,05 23,71
P - - 28,41 25,40 22,52 19,77 17,16 14,71
43ºC Q - - - 37,43 32,46 27,71 23,18 18,89
P - - - 26,79 23,60 20,55 17,66 14,93



Tech specs:
Part number:
AA-BK-135/4FE-28Y
Displacement at 1450 min-1:
101,8 m3/h
Number of cylinders:
2
Gaz connection:
Liquid line 7/8"
,
Suction line 2 1/8"
Fan:
2 / Ø 500 mm
Wydajność wentylatora:
15000 m3/h
Liquid receiver capacity:
30 dm3
Weight:

net

389 kg

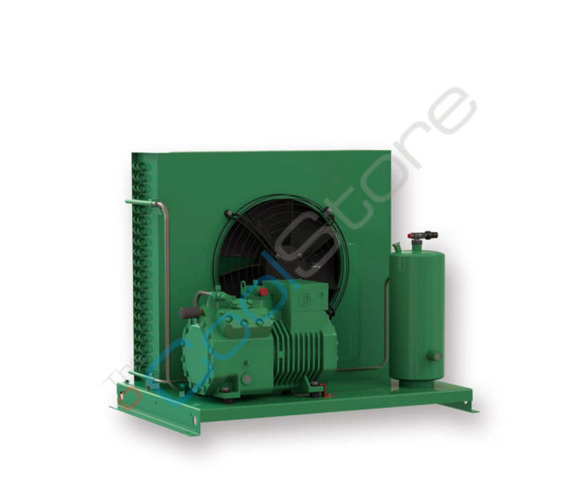

Pictures:
illustrative
