Condensing unit with compressor BITZER AA-BK-135/6HE-28Y

  • Condensing unit with compressor BITZER AA-BK-135/6HE-28Y
  • Condensing unit with compressor BITZER AA-BK-135/6HE-28Y
Producer: BITZER
Product code: AGBI_00043
Series:Agregaty skraplające Bitzer
11 623,50 €
/ pc.
9 450,00 €
net / pc.
Add to wish list

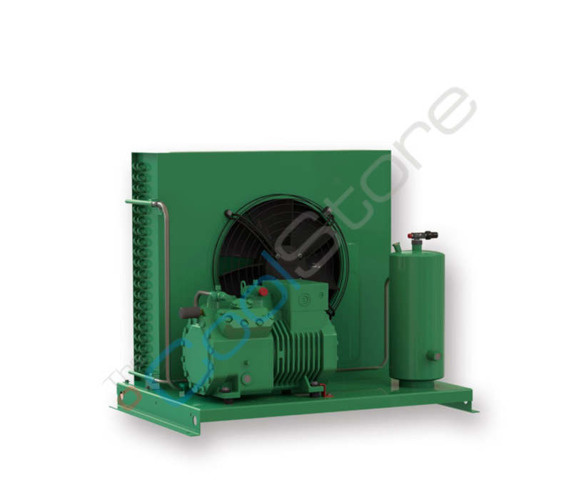

Condensing unit with compressor  BITZER AA-BK-135/6HE-28Y
Model

Cond.

temp.

Cooling capacity

(Q)[kW]

Evaporating temperature R-404a
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC
AA-BK-135/6HE-28Y 27 ºC Q - - 62,43 54,41 46,78 39,59 32,90 26,76
P - - 29,01 25,84 22,84 20,02 17,37 14,91
32 ºC Q - - 57,00 49,70 42,73 36,16 30,04 24,40
P - - 29,99 26,66 23,51 20,54 17,75 15,14
43ºC Q - - - - 33,70 28,55 23,71 19,19
P - - - - 24,63 21,33 18,23 15,33



Tech specs:
Part number:
AA-BK-135/6HE-28Y
Displacement at 1450 min-1:
110,5 m3/h
Number of cylinders:
6
Gaz connection:
Liquid line 7/8"
,
Suction line 2 1/8"
Fan:
2 / Ø 500 mm
Wydajność wentylatora:
15000 m3/h
Liquid receiver capacity:
30 dm3
Weight:

net

410 kg
Pictures:
illustrative
