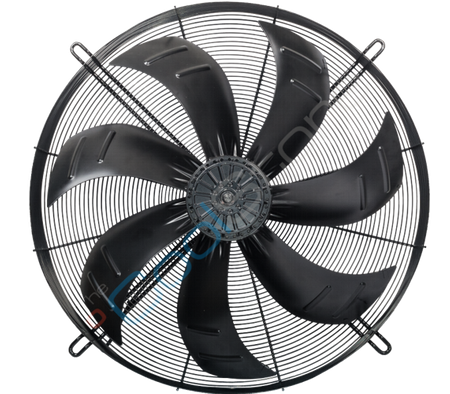

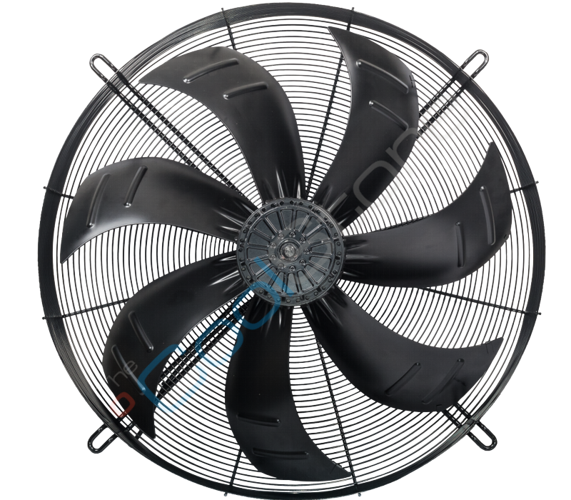

Olvent Pull Fan YWF.A6T-900S-7DIII 380V
OLVENT axial fans are used in air conditioning, ventilation, refrigeration, heating systems. A wide range of destination due to the large variety of fan: suction or blowing, single or three-phase power supply, diameter from 250 to 900 mm, as well as good qualities: a wide temperature range of application, any method of installation. In addition, to meet the requirements of the ErP Directive 2015 makes it possible to use fans in each application.
Tech specs:
| Diameter: | 900 mm |
| Power supply: | 380 V / 50 Hz |
| Flow: | Suction |
| Rated speed: | Δ=930 Y=800 min-1 |
| Air volume: | Δ=25000l Y=21000 m3/h |
| Current.: | Δ=3.6 Y=2.3 A |
| Input: | Δ=1750 Y=1300 W |
| Capacitor: | - |
| Sound level: | Δ=81 Y=78 dB(A) |
| Internal thermal protection: | 150±5°C |
| IP Protection: | 54 IP |
Weight: net | 40,5 kg |
| Directive ErP 2015: | ✓ |
| Pictures: | illustrative |
