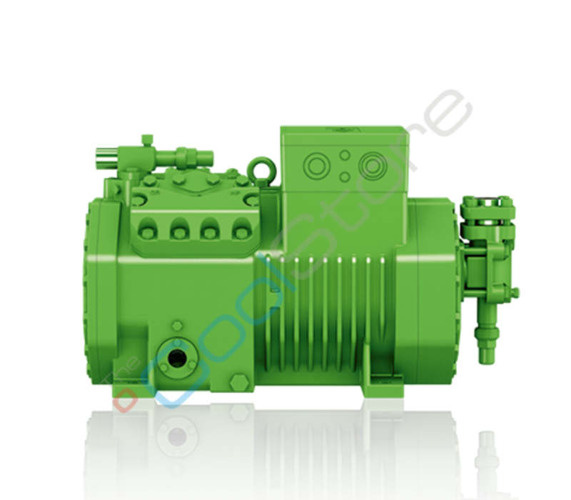

Compressor BITZER 2HES-2Y

  • Compressor BITZER
  • Compressor BITZER 2HES-2Y
Producer: BITZER
Product code: SPBI_00004
Series:Sprężarki Bitzer
1 284,12 €
/ pc.
1 044,00 €
net / pc.
Add to wish list
Compressor BITZER 2HES-2Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
2HES-2Y 30 ºC Q  7200 W 6020 W  5000 W  4110 W 3340 W 2680 W 2110 W 1620 W 1210 W 855 W
P 1,42  1,40  1,37  1,32  1,25  1,16  1,06  0,95  0,83  0,70
40 ºC Q  6060 W 5060 W  4190 W  3420 W  2760 W  2190 W  1700 W  1270 W  910 W  610 W
P  1,70 1,64  1,56  1,47  1,36  1,23  1,10  0,96  0,80  0,64
50ºC Q 4940 W  4110 W  3380 W  2740 W  2190 W  1700 W  1290 W  935 W  630 W  375 W
P  1,96 1,85  1,73  1,59  1,44  1,28  1,11  0,93  0,75  0,56



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
6,51 m3/h
Number of cylinders:
2 [eng]
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 5/8"
,
Discharge line 1/2"
Oil charge:
1 dm3
Weight:

net

45 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
