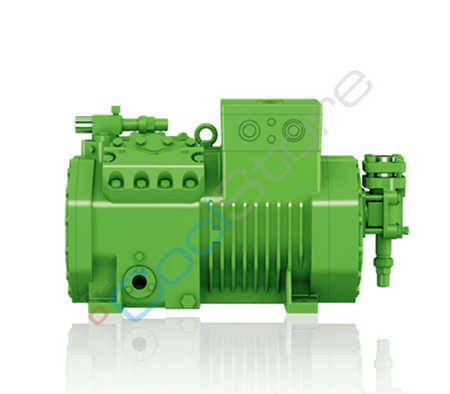

Compressor BITZER 2FES-3Y

  • Compressor BITZER
  • Compressor BITZER 2FES-3Y
Producer: BITZER
Product code: SPBI_00007
Series:Sprężarki Bitzer
1 357,92 €
/ pc.
1 104,00 €
net / pc.
Add to wish list
Compressor BITZER 2FES-3Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
2FES-3Y 30 ºC Q  10320 W 8640 W  7170 W  5900 W 4800 W 3850 W 3030 W 2330 W 1740 W 1250 W
P  2,03 2,00  1,95  1,86  1,76  1,63  1,49  1,34  1,17  1,00
40 ºC Q  8560 W 7160 W  5930 W  4860 W  3940 W  3130 W  2440 W  1850 W  1350 W  930 W
P  2,46 2,37  2,25  2,10  1,94  1,77  1,58  1,38  1,17  0,96
50ºC Q 6890 W  5760 W  4760 W  3890 W  3130 W  2470 W  1900 W  1410 W  995 W  645 W
P  2,88 2,72  2,53  2,33  2,11  1,88  1,64  1,40  1,15  0,91



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
9,54 m3/h
Number of cylinders:
2 [eng]
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 5/8"
,
Discharge line 1/2"
Oil charge:
1 dm3
Weight:

net

47 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
