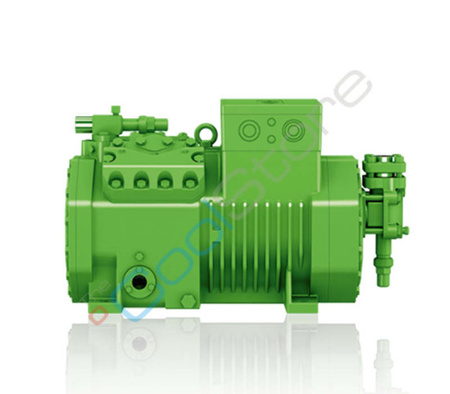

Compressor BITZER 2EES-3Y

  • Compressor BITZER
  • Compressor BITZER 2EES-3Y
Producer: BITZER
Product code: SPBI_00009
Series:Sprężarki Bitzer
1 965,54 €
/ pc.
1 598,00 €
net / pc.
Add to wish list
Compressor BITZER 2EES-3Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
2EES-3Y 30 ºC Q  13040 W  10920 W  9070 W  7470 W 6080 W 4890 W 3860 W 2980 W 2230 W 1600 W
P  2,40 2,36  2,27  2,16  2,02  1,87  1,69  1,50  1,31  1,11
40 ºC Q  11070 W 9250 W  7670 W  6300 W  5100 W  4070 W  3180 W  2420 W  1770 W  1220 W
P 2,89  2,76  2,61  2,43  2,23  2,02  1,79  1,55  1,32  1,08
50ºC Q  8980 W 7490 W  6180 W  5040 W  4050 W  3190 W  2450 W  1820 W  1280 W  830 W
P  3,27 3,08  2,86  2,62  2,36  2,09  1,82  1,54  1,26  0,99



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
11,4 m3/h
Number of cylinders:
2 [eng]
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 7/8"
,
Linia tłocząca 5/8"
Oil charge:
1,5 dm3
Weight:

net

71 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
