Compressor BITZER 4FES-5Y

  • Compressor BITZER
  • Compressor BITZER 4FES-5Y
Producer: BITZER
Product code: SPBI_00015
Series:Sprężarki Bitzer
2 333,31 €
/ pc.
1 897,00 €
net / pc.
Add to wish list
Compressor BITZER 4FES-5Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4FES-5Y 30 ºC Q 21050 W  17510 W  14460 W  11840 W 9610 W 7710 W 6100 W 4750 W 3640 W 2720 W
P 3,69  3,66  3,56  3,41  3,22  2,99  2,73  2,45  2,16 1,86
40 ºC Q  17810 W 14830 W  12260 W  10040 W  8140 W  6510 W  5140 W  3990 W  3030 W  2240 W
P 4,48  4,34  4,14  3,89  3,61  3,29  2,96  2,61  2,26  1,91
50ºC Q 14400 W 12010 W  9940 W  8130 W  6580 W  5250 W  4130 W  3180 W  2380 W  1730 W
P  5,12 4,88  4,58  4,25  3,88  3,49  3,09  2,68  2,27  1,87



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
18,1 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 7/8"
,
Linia tłocząca 5/8"
Oil charge:
2,0 dm3
Weight:

net

86 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes

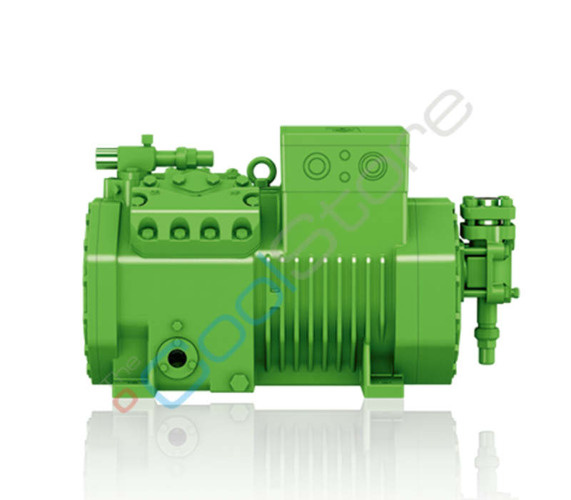

Pictures:
illustrative
