Compressor BITZER 4DES-5Y

  • Compressor BITZER
  • Compressor BITZER 4DES-5Y
Producer: BITZER
Product code: SPBI_00018
Series:Sprężarki Bitzer
2 718,30 €
/ pc.
2 210,00 €
net / pc.
Add to wish list
Compressor BITZER 4DES-5Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4DES-5Y 30 ºC Q   26200 W  21750 W  17860 W 14540 W 11700 W 9280 W 7250 W 5550 W 4140 W
P   5,64  5,47 5,22  4,89  4,51  4,08 3,63  3,16 2,70
40 ºC Q   18650 W  18530 W  15190 W  12320 W  9870 W  7790 W  6030 W  4580 W  3370 W
P   6,74  6,40  5,97  5,49  4,08  4,42  3,86  3,30  2,76
50ºC Q   18440 W  15220 W  12440 W  10040 W  8000 W  6260 W  4800 W  3600 W  2600 W
P   7,69  7,17  6,59  5,96  5,31  4,65  3,99  3,35  2,74



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
5,21 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 1 1/8"
,
Linia tłocząca 7/8"
Oil charge:
2,0 dm3
Weight:

net

86 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes

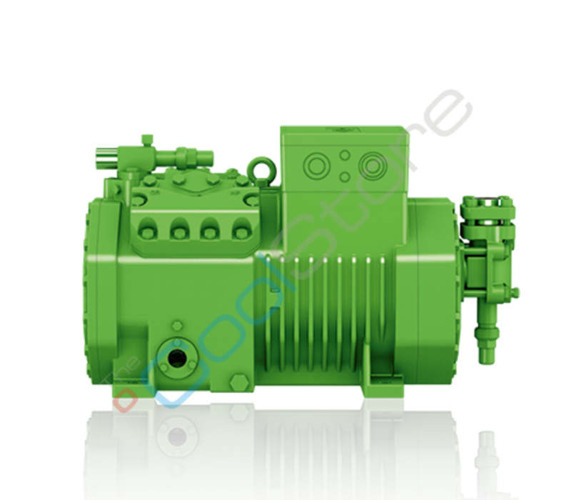

Pictures:
illustrative
