Compressor BITZER 4DES-7Y

  • Compressor BITZER
  • Compressor BITZER 4DES-7Y
Producer: BITZER
Product code: 4DES-7Y
Series:Sprężarki Bitzer
2 857,29 €
/ pc.
2 323,00 €
net / pc.
Add to wish list

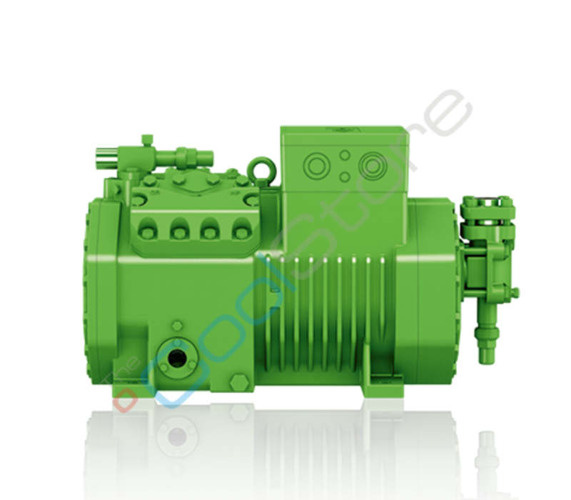

Compressor BITZER 4DES-7Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4DES-7Y 30 ºC Q  31450 W 26250 W  21750 W  17870 W 14540 W 11700 W 9280 W 7250 W 5550 W 4140 W
P 5,60  5,54  5,39 5,15  4,84  4,47  4,06 3,63  3,18 2,73
40 ºC Q  26900 W 22400 W  18540 W  15190 W  12320 W  9870 W  7790 W  6040 W  4580 W  3370 W
P  6,81 6,57  6,25  5,85  5,40  4,91  4,39  3,85  3,31  2,79
50ºC Q  22150 W  18430 W  15220 W  12440 W  10040 W  8000 W  6260 W  4810 W  3600 W  2600 W
P 7,83  7,43  6,96  6,42  5,84  5,23  4,61  3,98  3,36  2,77



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
5,21 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 1 1/8"
,
Linia tłocząca 7/8"
Oil charge:
2,0 dm3
Weight:

net

89 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
