Compressor BITZER 4VES-7Y

  • Compressor BITZER
  • Compressor BITZER 4VES-7Y
Producer: BITZER
Product code: SPBI_00022
Series:Sprężarki Bitzer
3 890,49 €
/ pc.
3 163,00 €
net / pc.
Add to wish list
Compressor BITZER 4VES-7Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4VES-7Y 30 ºC Q   34100 W  28150 W  23000 W 18590 W 14820 W 11600 W 8890 W 6630 W 4750 W
P   7,15  6,92 6,55  6,07  5,52  4,91 4,27  3,64 3,04
40 ºC Q   28800 W  23650 W  19180 W  15360 W  12110 W  9350 W  7040 W  5130 W  3560 W
P   8,58  8,04  7,39  6,68  5,13  5,13  4,35  3,60  2,91
50ºC Q   23550 W  19180 W  15430 W  12210 W  9480 W  7190 W  5280 W  3710 W  2440 W
P   9,77  8,92  8,02  7,08  6,12  5,18  4,28  3,43  2,67



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
34,7 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 1 1/8"
,
Linia tłocząca 7/8"
Oil charge:
2,6 dm3
Weight:

net

129 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes

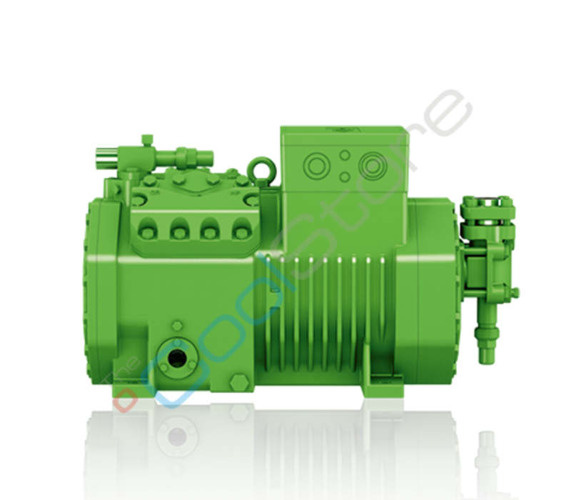

Pictures:
illustrative
