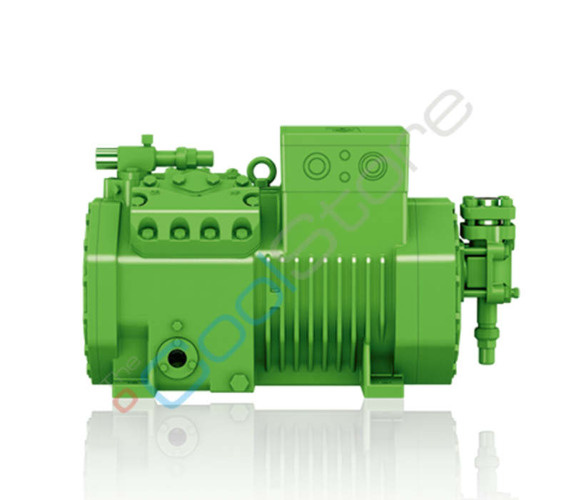

Compressor BITZER 4NES-14Y

  • Compressor BITZER
  • Compressor BITZER 4NES-14Y
Producer: BITZER
Product code: SPBI_00028
Series:Sprężarki Bitzer
4 878,18 €
/ pc.
3 966,00 €
net / pc.
Add to wish list
Compressor BITZER 4NES-14Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4NES-14Y 30 ºC Q   55400 W  45700 W  37400 W 30250 W 24150 W 18980 W 14650 W 11050 W 8090 W
P   11,59 11,15 10,54   9,78 8,91  7,97 6,98  5,98 5,00
40 ºC Q   47200 W  38800 W  31550 W  25400 W  20100 W  15640 W  11910 W  8820 W  6290 W
P   13,74  12,91  11,93  10,84  9,67  8,45  7,23  6,03  4,88
50ºC Q   38550 W  31550 W  25500 W  20350 W  15950 W  12240 W  9140 W  6580 W  4510 W
P   15,46  14,25  12,93  11,53  10,08  8,61  7,17  5,79  4,49



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
56,2 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Linia tłocząca 1 1/8"
,
Linia ssawna 1 3/8"
Oil charge:
2,6 dm3
Weight:

net

141 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
