Compressor BITZER 4JE-15Y

  • Compressor BITZER
  • Compressor BITZER 4JE-15Y
Producer: BITZER
Product code: 4JE-15Y
Series:Sprężarki Bitzer
6 398,46 €
/ pc.
5 202,00 €
net / pc.
Add to wish list
Compressor BITZER 4JE-15Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]
Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4JE-15Y 30 ºC Q   62400 W  51900 W  42850 W 34950 W 28200 W 22400 W 17440 W 13250 W 9730 W
P   13,05 12,56 11,91   11,12 10,22  9,24 8,21  7,15 6,10
40 ºC Q   53400 W  44300 W  36400 W  29550 W  23650 W  18600 W  14300 W  10680 W  7650 W
P   15,41  14,50  13,46  12,31  11,10  9,84  8,56  7,29  6,06
50ºC Q   44200 W  36500 W  29850 W  24050 W  19080 W  14810 W  11200 W  8160 W  5640 W
P   17,40  16,10  14,69  13,22  11,71  10,18  8,67  7,21  5,82



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
63,5 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 1 5/8"
,
Linia tłocząca 1 1/8"
Oil charge:
4,0 dm3
Weight:

net

190 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes

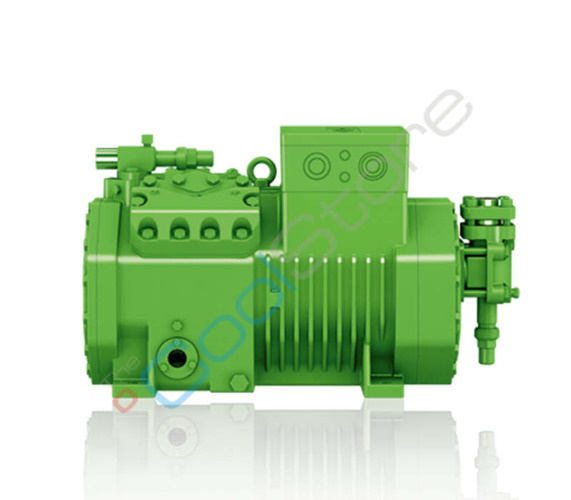

Pictures:
illustrative
