Compressor BITZER 4HE-25Y

  • Compressor BITZER
  • Compressor BITZER 4HE-25Y
Producer: BITZER
Product code: SPBI_00033
Series:Sprężarki Bitzer
6 415,68 €
/ pc.
5 216,00 €
net / pc.
Add to wish list

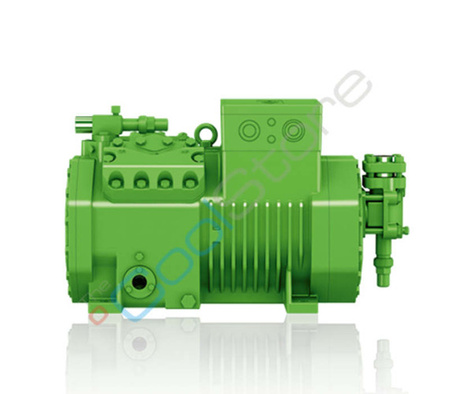

Compressor BITZER 4HE-25Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]

Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4HE-25Y 30 ºC Q   72700 W  60500 W  50000 W 40900 W 33050 W 26300 W 20600 W 15750 W 11680 W
P   15,66 15,02 14,20   13,22 12,12  10,94 9,71  8,45 7,21
40 ºC Q   62200 W  51700 W  42600 W  34700 W  27900 W  22050 W  17080 W  12890 W  9390 W
P   18,50  17,36  16,08  14,69  13,23  11,72  10,20  8,71  7,28
50ºC Q   51400 W  42650 W  35000 W  28350 W  22600 W  17720 W  13570 W  10070 W  7160 W
P   20,93  19,32  17,61  15,84  14,03  12,22  10,44  8,74  7,14
        - Additional cooling or limiting suction gas temperature.





Tech specs:
Displacement at 1450 min-1:
73,7 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 2 1/8"
,
Linia tłocząca 1 1/8"
Oil charge:
4,0 dm3
Weight:

net

194 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
